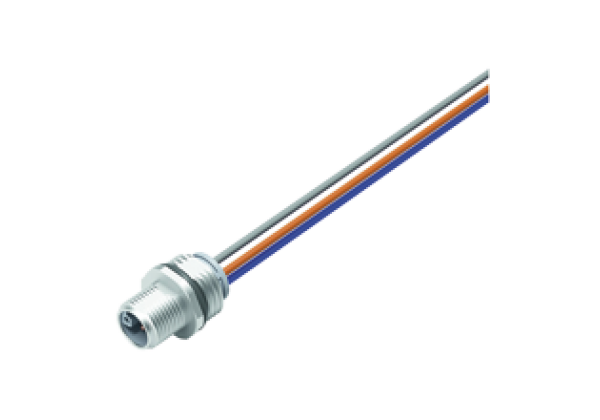

Receptacles V15SL-M16-500
Brand: Pepperl+Fuchs
Code: V15SL-M16-500
Receptacles, M12/M16, 4-pin
Datasheet excerpt: Technical data of V15SL-M16-500
| Product Description |
|---|
| Receptacles, M12/M16, 4-pin |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| UL File Number | E191152 | |
| Electrical specifications | ||
| Rated voltage | 63 V | |
| Rated current | 12 A at 40 °C | |
| Volume resistance | max. 5 mΩ | |
| Surge protection | Category III | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Pin diameter | 1 mm | |
| Degree of protection | IP68 | |
| Connection | flexible leads (16 AWG) | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Connector | Zinc die-casting, nickel-plated | |
| Cable | ||
| Length | 500 mm | |
| Mating cycles | min. 100 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
