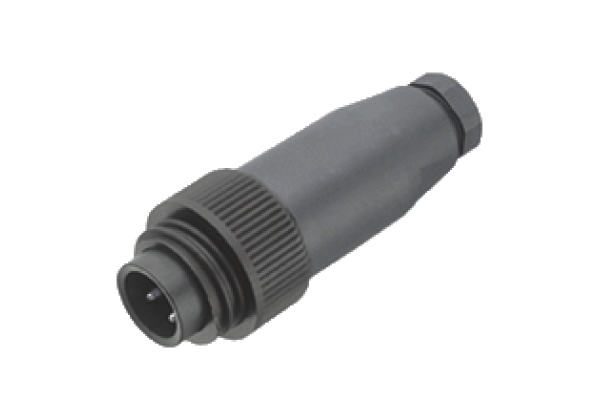

Field-attachable male connector V16S-G
Brand: Pepperl+Fuchs
Code: V16S-G
Cable connector, Rd 24, 6-pin+PE, easy to assemble
Datasheet excerpt: Technical data of V16S-G
| Product Description |
|---|
| Cable connector, Rd 24, 6-pin+PE, easy to assemble |
| General specifications | ||
|---|---|---|
| Number of pins | 6 + PE | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | Rd 24 | |
| Electrical specifications | ||
| Operating voltage | max. 250 V | |
| Operating current | max. 10 A | |
| Ambient conditions | ||
| Ambient temperature | -40... 100 °C (-40... 212 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 1 x connector, Rd 24 x 1/8" screw terminal for max. 1.5 mm2 PG9 cable gland | |
| Material | ||
| Contacts | CuSn / Au | |
| Body | PBT | |
| Cable | ||
| Sheath diameter | 6... 8 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
