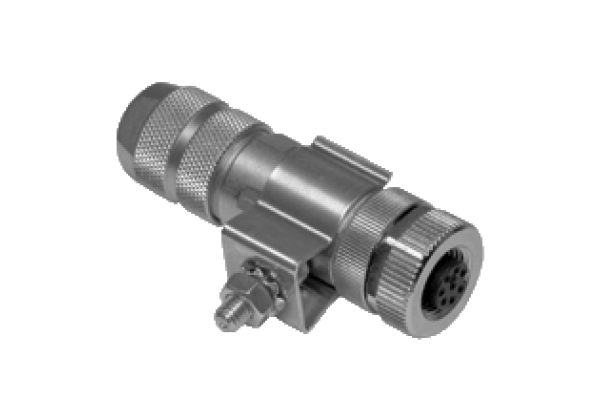

Field attachable female cordset with earth clamp V19-G-ABG-PG9-FE
Brand: Pepperl+Fuchs
Code: V19-G-ABG-PG9-FE
Female connector, M12, 8-pin, shielded, field attachable
Datasheet excerpt: Technical data of V19-G-ABG-PG9-FE
| Product Description |
|---|
| Female connector, M12, 8-pin, shielded, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 8 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Electrical specifications | ||
| Operating voltage | max. 30 V DC | |
| Operating current | max. 2 A | |
| Volume resistance | < 3 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Screw terminals for max. 0.5 mm2 PG9 cable gland | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Body | Zinc die-casting, nickel-plated | |
| Slotted nut | Zinc die-casting, nickel-plated | |
| Cable | ||
| Sheath diameter | 5... 8 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
