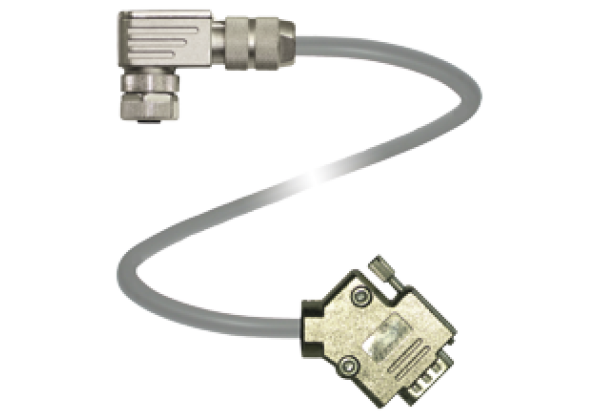

Connection cable, shielded V19-W-2M-PUR-ABG-SUBD9-W-Y

Code: V19-W-2M-PUR-ABG-SUBD9-W-Y

Connecting cable, M12 to SUB-D, PUR cable, 8-pin, shielded

Datasheet excerpt: Technical data of V19-W-2M-PUR-ABG-SUBD9-W-Y

Product Description
Connecting cable, M12 to SUB-D, PUR cable, 8-pin, shielded

General specifications
Number of pins		8 + shield
Connection 1		socket
Construction type 1		angled
Threading 1		M12
Connection 2		plug
Construction type 2		angled
Threading 2		Sub-D
Electrical specifications
Operating voltage		max. 30 V AC/DC
Operating current		max. 1.5 A
Volume resistance		< 5 mΩ
Ambient conditions
Ambient temperature		-20... 80 °C (-4... 176 °F)
Pollution degree		3
Mechanical specifications
Contact elements		spring-loaded contact socket, pins
Pin diameter		1 mm
Degree of protection		IP20 (Sub-D connector) IP67 (M12 socket)
Material
	Contacts	CuZn Ni/Au
	Contact surface	Au
	Body	Zinc diecast, nickel-plated metallized plastic
	Cable	PUR
	Slotted nut	Zinc diecast, nickel-plated
	Core insulation	PP
Cable		fine-strand, flexible
	Sheath diameter	∅ 6 mm
	Bending radius	cable, flexing: 60 mm, cable, fixed: 30 mm
	Color	grey
	Cores	8 x 0.25 mm²
	Conductor construction	19 x 0.127 mm ∅
	Shield	grid covering 85 %
	Length	2 m
Flammability
	Contact carrier	94 HB
	Housing	94 V-2 / 94 V-0
