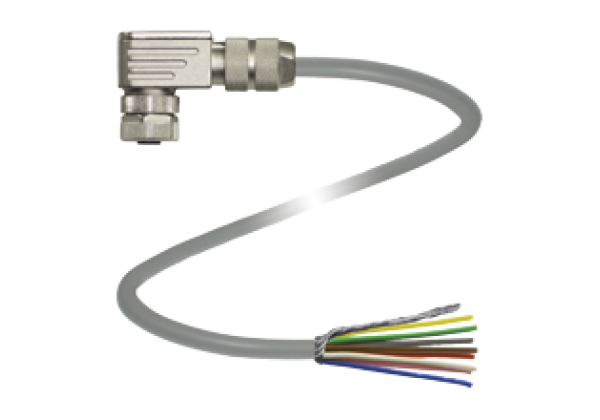

Connection cable V19-W-5M-PVC-TP
Brand: Pepperl+Fuchs
Code: V19-W-5M-PVC-TP
Connecting cable, M12 to open cable end, 8-pin shielded PVC cable
Datasheet excerpt: Technical data of V19-W-5M-PVC-TP
| Product Description |
|---|
| Connecting cable, M12 to open cable end, 8-pin shielded PVC cable |
| General specifications | ||
|---|---|---|
| Number of pins | 8 + shield | |
| Connection 1 | socket | |
| Construction type 1 | angled | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 2 A | |
| Characteristic impedance | 100 Ω ± 15 Ω (> 1 MHz) | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Body | Zinc diecast, nickel-plated | |
| Cable | PVC | |
| Core insulation | PVC | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 6.2 mm | |
| Bending radius | > 15 x cable diameter, moving > 6 x cable diameter, fixed | |
| Color | grey | |
| Cores | 4 x 2 x 0.14 mm2 | |
| Shield | grid | |
| Length | 5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
