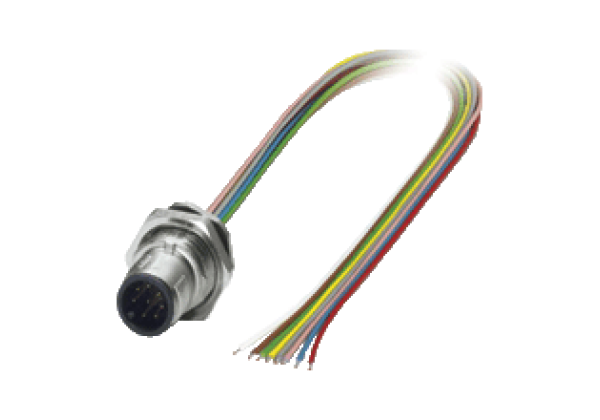

Receptacles V19S-M16H-500
Brand: Pepperl+Fuchs
Code: V19S-M16H-500
Receptacles, M12/M16, 8-pin
Datasheet excerpt: Technical data of V19S-M16H-500
| Product Description |
|---|
| Receptacles, M12/M16, 8-pin |
| General specifications | ||
|---|---|---|
| Number of pins | 8 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 30 V DC | |
| Test voltage | > 2000 V eff AC | |
| Operating current | max. 2 A | |
| Volume resistance | < 3 mΩ | |
| Insulation resistance | min. 100 MΩ | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) active -40... 85 °C (-40... 185 °F) fixed | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | Tinned copper single leads, ∅1.15 ±0.07 mm | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Threaded bushings | Zinc die-casting, nickel-plated | |
| Seal | FKM | |
| Core insulation | TPE | |
| Cable | ||
| Cores | 8 x 0.25 mm2 | |
| Conductor construction | 14 x 0.15 mm ∅ AWG 24 | |
| Length | 500 mm | |
| Installation | Rear mounting M16 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
