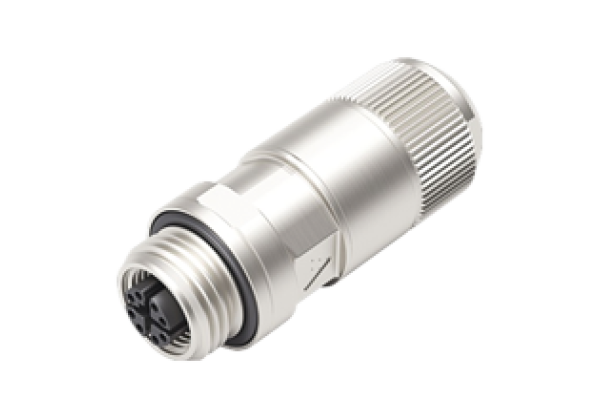

Female connector, field-attachable V19X-G-ABG
Brand: Pepperl+Fuchs
Code: V19X-G-ABG
Female connector M12 straight X-coded 8-pin, Cat6A, shielded, for cable diameter 5.5 - 9 mm, field-attachable, insulation displacement connection
Datasheet excerpt: Technical data of V19X-G-ABG
| Product Description |
|---|
| Female connector M12 straight X-coded 8-pin, Cat6A, shielded, for cable diameter 5.5 - 9 mm, field-attachable, insulation displacement connection |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 8 | |
| Coding | X-coded | |
| Customization | suitable for wall bushing | |
| Electrical specifications | ||
| Operating voltage | max. 50 V AC / 60 V DC | |
| Operating current | max. 0.5 A | |
| Volume resistance | max. 15 mΩ | |
| Contact resistance | max. 5 MΩ | |
| Insulation resistance | min. 100 MΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Fieldbus standard | IEEE 802.3an 10GBASE-T | |
| Transmission technology | suitable for PoE+ Power over Ethernet IEEE 802.3at | |
| Plug connection | connector M12 x 1 : IEC 61076-2-109 | |
| Component category | CAT6A (IEC 11801, EN 50173) | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Tool installation | hexagon nut SW = 19 mm | |
| Mating cycles | min. 100 | |
| Shielding | via Body | |
| Degree of protection | IP67 | |
| Connection | Wire manager included with delivery | |
| Cable | ||
| Sheath diameter | 5,5... 9 mm | |
| Core cross section | 0.1... 0.34 mm2 / 27... 22 AWG | |
| Mass | 48.25 g | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | Zinc diecast, nickel-plated / brass, nickel-plated | |
| Contact surface | Au | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
