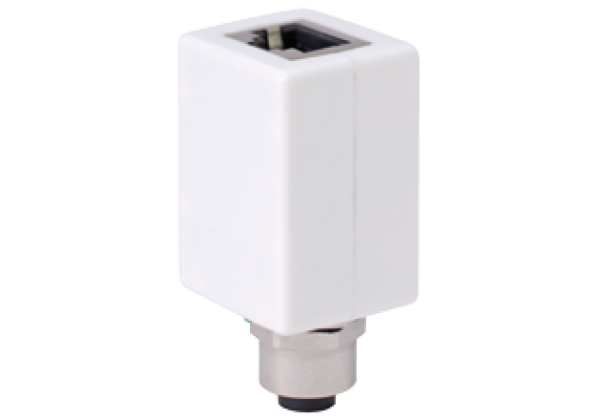

panel mount V1D-M12H-V45-Y917140
Brand: Pepperl+Fuchs
Code: V1D-M12H-V45-Y917140
Panel mount, adapter RJ45 socket to M12 socket D-coded
Datasheet excerpt: Technical data of V1D-M12H-V45-Y917140
| Product Description |
|---|
| Panel mount, adapter RJ45 socket to M12 socket D-coded |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | Male connector | |
| Construction type 2 | straight | |
| Threading 2 | RJ-45 | |
| Electrical specifications | ||
| Operating voltage | max... 42 V DC | |
| Operating current | max 1.5 A | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | CAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001) IEC 61076-2-101:2008 | |
| Ambient conditions | ||
| Ambient temperature | -40... 80 °C (-40... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Material | ||
| Contacts | Gold plated copper alloy | |
| Housing | PBT | |
| Connector | nickel-plated brass | |
| Slotted nut | nickel-plated brass | |
| General information | ||
| Note | Category 5 : RJ-45 connector | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
