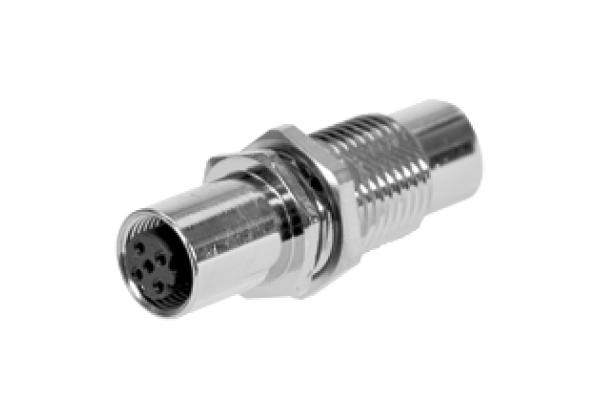

panel mount V1D-M16-V1D
Brand: Pepperl+Fuchs
Code: V1D-M16-V1D
Switch cabinet feedthrough, M12/M12, 4-pin, D-coded
Datasheet excerpt: Technical data of V1D-M16-V1D
| Product Description |
|---|
| Switch cabinet feedthrough, M12/M12, 4-pin, D-coded |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| Connection 2 | socket | |
| Construction type 2 | straight | |
| Threading 2 | M12 | |
| Electrical specifications | ||
| Operating voltage | max.... 60 V DC | |
| Operating current | max. 4 A | |
| Ambient conditions | ||
| Ambient temperature | -40... 105 °C (-40... 221 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Material | ||
| Contacts | Gold plated copper alloy | |
| Housing | nickel-plated brass | |
| Slotted nut | nickel-plated brass | |
| Sleeve connector | Polyamide (PA) | |
| Seal | FPM | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440103 |
| ECLASS 10.0.1 | 27440103 |
| ECLASS 9.0 | 27440103 |
| ECLASS 8.0 | 27440103 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 6.0 | EC002061 |
| ETIM 5.0 | EC001121 |
| UNSPSC 12.1 | 31251501 |
