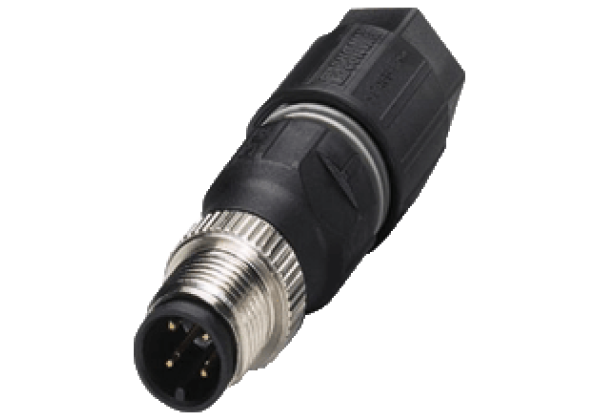

Male connector, field-attachable V1S-G-Q2
Brand: Pepperl+Fuchs
Code: V1S-G-Q2
Male connector M12 straight A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection
Datasheet excerpt: Technical data of V1S-G-Q2
| Product Description |
|---|
| Male connector M12 straight A-coded 4-pin, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 250 V AC/DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 5 mΩ | |
| Insulation resistance | min. 100 MΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Approvals and certificates | ||
| UL approval | E191152 | |
| Ambient conditions | ||
| Ambient temperature | -25... 80 °C (-13... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.4 Nm | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP65/IP67 | |
| Connection | Insulation displacement connection for 0.34... 0.75 mm2 / AWG 22... AWG 18 | |
| Cable | ||
| Sheath diameter | 4... 8 mm | |
| Cores | ∅ 1.3... 2.6 mm incl. insulation Cross-section: 0.34... 0.75 mm2 Cable construction: Class 2-6 in accordance with VDE 0295 | |
| Mass | 14.7 g | |
| Mounting | max. tightening torque on the coupling nut: ≤ 1.5 Nm | |
| Note | max. 10 connections possible to a cable of the same cross-section. After repeated cable connection it may be necessary to renew the seal and cap. | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | PA 66, black | |
| Contact surface | Ni/Au | |
| Flammability | V-0 | |
| Cable | ||
| Core insulation | PVC/PE/PP | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
