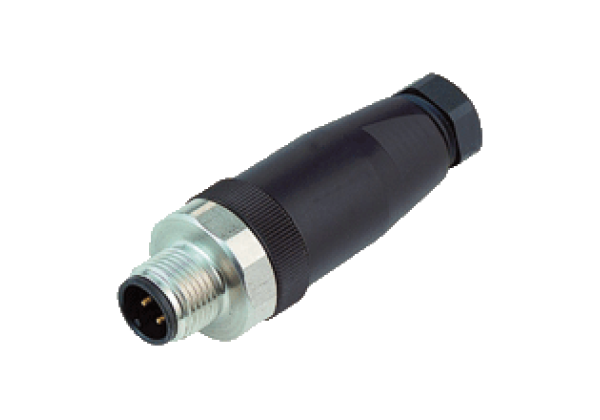

Field-attachable male connector V1S-GV4A
Brand: Pepperl+Fuchs
Code: V1S-GV4A
Field-attachable male connector
Datasheet excerpt: Technical data of V1S-GV4A
| Product Description |
|---|
| Field-attachable male connector |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M12 | |
| UL File Number | E363587 | |
| Electrical specifications | ||
| Operating voltage | max. 250 V AC/DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 3 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 1 x M12 connector, straight Screw terminals for max. 0.75 mm2 | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Body | PA | |
| Cable | ||
| Sheath diameter | 4... 6 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
