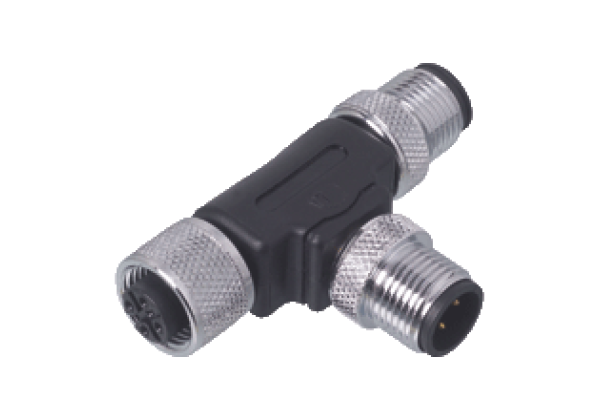

T-Distributor V1S-TEE-V1/V1S
Brand: Pepperl+Fuchs
Code: V1S-TEE-V1/V1S
T-Splitter M12 plug to M12 plug / M12 socket 4-pin A-coded
Datasheet excerpt: Technical data of V1S-TEE-V1/V1S
| Product Description |
|---|
| T-Splitter M12 plug to M12 plug / M12 socket 4-pin A-coded |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | -25... 85 °C (-13... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP65/IP67 | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU | |
| Contact surface | Ni/Au | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440106 |
| ECLASS 12.0 | 27440106 |
| ECLASS 11.0 | 27440106 |
| ECLASS 10.0.1 | 27440106 |
| ECLASS 9.0 | 27440106 |
| ECLASS 8.0 | 27440312 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC002925 |
| ETIM 7.0 | EC002925 |
| ETIM 6.0 | EC002925 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
