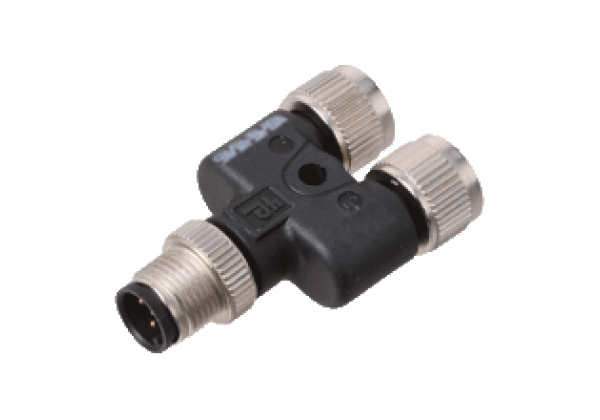

Y-Splitter V1S-Y-V11/V11

Code: V1S-Y-V11/V11

Y-Splitter M12 plug 4-pin to 2x M12 socket 3-pin A-coded

Datasheet excerpt: Technical data of V1S-Y-V11/V11

Product Description
Y-Splitter M12 plug 4-pin to 2x M12 socket 3-pin A-coded

General specifications
Connector 1
	Connection	socket
	Construction type	M12
	Style	straight
	Locking	screw connection
	Number of pins	3
	Coding	A-coded
Connector 2
	Connection	socket
	Construction type	M12
	Style	straight
	Locking	screw connection
	Number of pins	3
	Coding	A-coded
Connector 3
	Connection	plug
	Construction type	M12
	Style	straight
	Locking	screw connection
	Number of pins	4
	Coding	A-coded
UL File Number		E231213
Electrical specifications
Operating voltage		max. 48 V AC / 60 V DC
Operating current		4 A
Conformity
Degree of protection		EN 60529
Plug connection		connector M12 x 1 : IEC 61076-2-101
Flammability		UL 94 , UL 758 / 1581
Approvals and certificates
UL approval		UL Recognized General purpose
	Maximum permissible operating voltage	max. 60 V
	Maximum permissible ambient temperature	max. 80 °C (max. 176 °F)
Ambient conditions
Ambient temperature		-40... 90 °C (-40... 194 °F)
Pollution degree		3
Mechanical specifications
Plug connector
	Tightening torque	0.6 Nm
	Loosening protection	available
	Tool installation	straight knurling
	Mating cycles	min. 100
Degree of protection		IP67
Mounting		Mounting hole for M4 screw
Material
Plug connector
	Screw connection	Zinc diecast, nickel-plated
	Body	TPU
	Contact surface	Au
	Flammability	V-2
