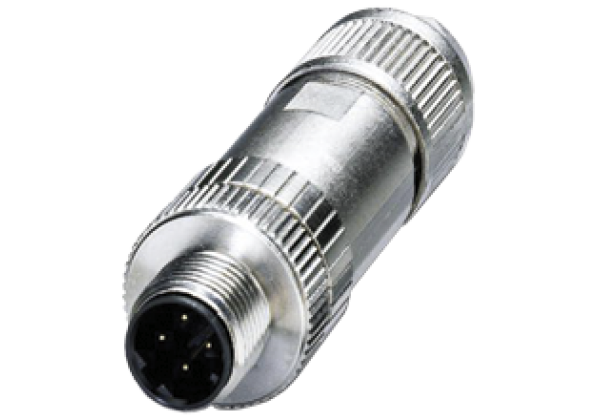

Male connector, field-attachable V1SD-G-ABG-PG9-Q3
Brand: Pepperl+Fuchs
Code: V1SD-G-ABG-PG9-Q3
Male connector M12 straight D-coded 4-pin, shielded, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection
Datasheet excerpt: Technical data of V1SD-G-ABG-PG9-Q3
| Product Description |
|---|
| Male connector M12 straight D-coded 4-pin, shielded, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | D-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 1.75 A | |
| Insulation resistance | min. 100 MΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Fieldbus standard | PROFINET | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Component category | CAT5 (IEC 11801) | |
| Flammability | UL 94 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nut | |
| Tool installation | straight knurling , SW = 16 mm , SW = 13 mm | |
| Mating cycles | min. 100 | |
| Shielding | shield connected to connector | |
| Degree of protection | IP67 | |
| Connection | Insulation displacement connection for 0.25... 0.34 mm2 | |
| Cable | ||
| Sheath diameter | 4... 8 mm | |
| Mass | 44 g | |
| Material | ||
| Plug connector | ||
| Screw connection | brass, nickel-plated | |
| Body | Zinc diecast, nickel-plated | |
| Seal | Neoprene | |
| Contact surface | Ni/Au | |
| Flammability | V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
