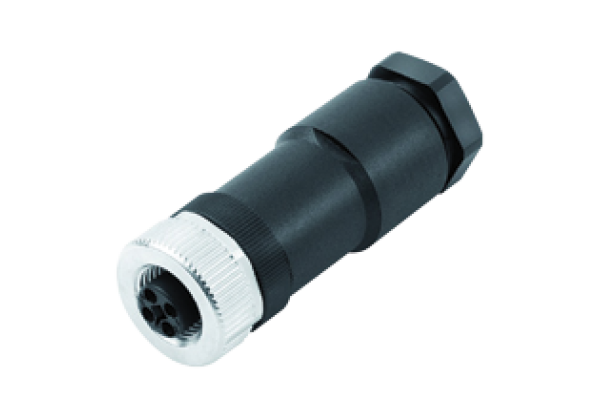

Female connector, field-attachable V1T-G-PG11
Brand: Pepperl+Fuchs
Code: V1T-G-PG11
Female connector M12 straight T-coded 4-pin, for cable diameter 8 - 10 mm, field-attachable
Datasheet excerpt: Technical data of V1T-G-PG11
| Product Description |
|---|
| Female connector M12 straight T-coded 4-pin, for cable diameter 8 - 10 mm, field-attachable |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | T-coded | |
| Electrical specifications | ||
| Rated operating voltage | max. 48 V AC / 63 V DC | |
| Rated operating current | max. 12 A | |
| Volume resistance | < 5 mΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Tool installation | straight knurling , hexagon nut SW = 18 mm | |
| Mating cycles | min. 100 | |
| Degree of protection | IP67 | |
| Connection | screw terminals for max. 1.5 mm2 / AWG 16 with wire end ferrule screw terminals for max. 2.5 mm2 / AWG 14 without wire end ferrule | |
| Cable | ||
| Sheath diameter | 8... 10 mm | |
| Mass | 27 g | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | PA, black | |
| Contact surface | Au | |
| Flammability | V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
