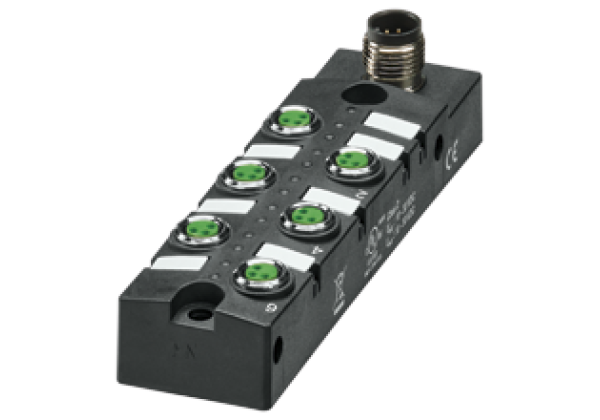

Splitter box M8 V3-6A-E2-V19

Code: V3-6A-E2-V19

Splitter box 6 x M8 single allocation, with 8-pole M12 plug

Datasheet excerpt: Technical data of V3-6A-E2-V19

Product Description
Splitter box 6 x M8 single allocation, with 8-pole M12 plug

General specifications
Connector 1
	Connection	socket
	Construction type	6x M8
	Locking	screw connection
	Number of pins	3
	Coding	A-coded
Connector 2
	Connection	plug
	Construction type	M12
	Locking	screw connection
	Number of pins	8
	Coding	A-coded
UL File Number		E223772
Indicators/operating means
LED green		supply voltage each module
LED yellow		I/O status indication
Electrical specifications
Operating voltage		24 V DC, max. 30 V DC
Operating current		≤ 5 mA per channel indication element
Current loading capacity		≤ 2 A per channel, ≤ 2 A per plug-in station, ≤ 2 A total current per splitter box
Conformity
Degree of protection		EN 60529
Plug connection		connector M8 x 1 : IEC 61076-2-104 connector M12 x 1 : IEC 61076-2-101
Flammability		UL 94
Ambient conditions
Ambient temperature		-25... 80 °C (-13... 176 °F)
Mechanical specifications
Connector 1
	Tightening torque	0.2 Nm
	Mating cycles	min. 100
Connector 2
	Tightening torque	0.4 Nm
	Mating cycles	min. 100
Degree of protection		IP67
Material
Plug connector
	Screw connection	Cu alloy , nickel-plated
	Body	PBT, black
	Seal	FKM
	Contact surface	Ni/Au
	Flammability	V-0
General information
Note		During installation of cables respect the maximum allowed bending radius. Excessive bending forces endanger the degree of protection. Secure the connector from mechanical forces, for example by means of cable ties. Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories".
