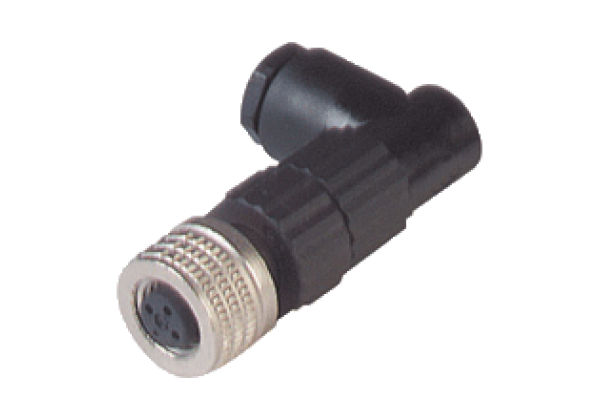

Female connector, field-attachable V3-WM-MQ
Brand: Pepperl+Fuchs
Code: V3-WM-MQ
Female connector M8 angled A-coded 3-pin, for cable diameter 4 - 5 mm, field-attachable, insulation displacement connection
Datasheet excerpt: Technical data of V3-WM-MQ
| Product Description |
|---|
| Female connector M8 angled A-coded 3-pin, for cable diameter 4 - 5 mm, field-attachable, insulation displacement connection |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | angled | |
| Locking | screw connection | |
| Number of pins | 3 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 3 A (2 A at 0.14 mm2) | |
| Volume resistance | < 5 mΩ | |
| Insulation resistance | min. 100 MΩ | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Insulation displacement connection for 0.25... 0.5 mm2 / AWG 24... AWG 20 | |
| Cable | ||
| Sheath diameter | 4... 5 mm | |
| Cores | Cross-section: 0.14... 0.34 mm2 | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | PA, black | |
| Seal | NBR | |
| Contact surface | Au | |
| Flammability | V-2 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
