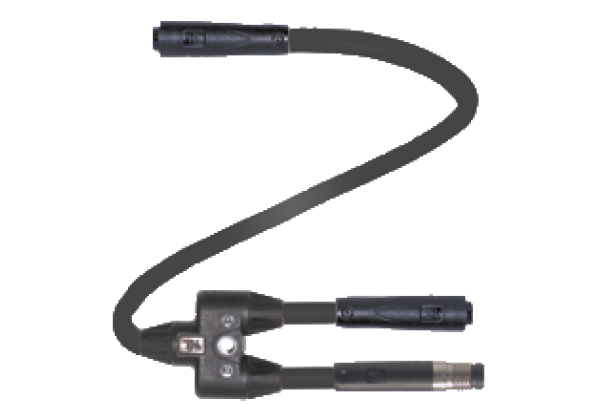

Y connection cable V31-0,3MPVC/V31S-0,1-TEE-V31-G
Brand: Pepperl+Fuchs
Code: V31-0,3MPVC/V31S-0,1-TEE-V31-G
Y connection cable M8 socket snap-lock straight A-coded 4-pin to 1x M8 socket / 1x M8 plug snap-lock straight A-coded 4-pin, PVC cable black
Datasheet excerpt: Technical data of V31-0,3MPVC/V31S-0,1-TEE-V31-G
| Product Description |
|---|
| Y connection cable M8 socket snap-lock straight A-coded 4-pin to 1x M8 socket / 1x M8 plug snap-lock straight A-coded 4-pin, PVC cable black |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | straight | |
| Locking | snap locking | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | plug | |
| Construction type | M8 | |
| Style | straight | |
| Locking | snap locking | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | straight | |
| Locking | snap locking | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | 30 V AC/DC | |
| Operating current | max. 3 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 | |
| Flammability | UL 1581 , IEC 60332-1-2 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -25... 90 °C (-13... 194 °F) | |
| Cable, fixed | -25... 80 °C (-13... 176 °F) | |
| Cable, flexing | -5... 80 °C (23... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Mating cycles | min. 100 | |
| Degree of protection | IP65 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.3 mm | |
| Bending radius | > 15 x cable diameter, moving > 5 x cable diameter, fixed | |
| Sheath stripping force | max. 50 N / 300 mm | |
| Sheath color | black (similar to RAL 9005) | |
| Number of cores | 4 | |
| Core cross section | 0.34 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black | |
| Core construction | 19 x 0.15 mm ∅ | |
| Length | L1 = 300 mm L2 = 100 mm L3 = 100 mm | |
| Cable code | Li YY 4 x 0,34 | |
| Material | ||
| Plug connector | ||
| Body | PUR, black | |
| Contact surface | Au | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PVC | |
| Core insulation | PVC | |
| Flammability | FT1 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
