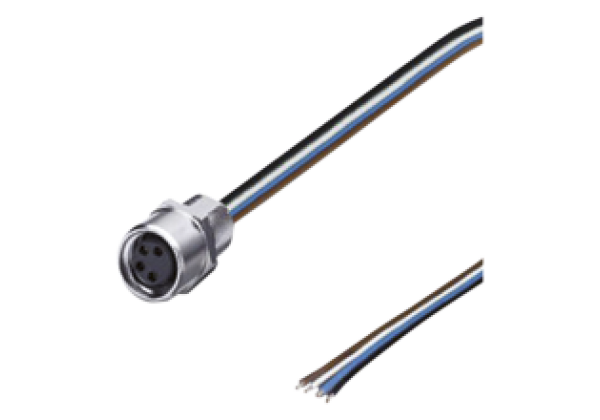

Receptacles V31-M8-500

Code: V31-M8-500

Receptacles, M8, 4-pin

Datasheet excerpt: Technical data of V31-M8-500

Product Description
Receptacles, M8, 4-pin

General specifications
Connector 1
	Connection	socket
	Construction type	M8
	Style	straight
	Locking	screw connection
	Number of pins	4
	Coding	A-coded
UL File Number		E191152
Electrical specifications
Operating voltage		max. 48 V AC / 60 V DC
Operating current		max. 4 A
Volume resistance		< 3 mΩ
Conformity
Degree of protection		EN 60529
Plug connection		connector M8 x 1 : IEC 61076-2-104
Flammability		IEC 60332-1-2
Halogen-free		IEC 60754-1
Ambient conditions
Ambient temperature
	Plug connector	-25... 85 °C (-13... 185 °F)
	Cable, fixed	-40... 105 °C (-40... 221 °F)
	Cable, flexing	-10... 105 °C (14... 221 °F)
Pollution degree		3
Mechanical specifications
Plug connector
	Tightening torque	0.4 Nm
	Mating cycles	min. 100
Degree of protection		IP67
Material
	Contacts	CuSn
	Contact surface	Au
	Connector	brass, nickel-plated
	Seal	FKM
	Core insulation	PVC
Cable
	Number of cores	4
	Core cross section	0.25 mm²
	Cores color	Core 1: brown Core 2: white Core 3: blue Core 4: black
	Core construction	7 x 0.2 mm ∅
	Length	500 mm
Installation		Front mounting M8
Material
Halogen-free		yes
Plug connector
	Screw connection	brass, nickel-plated
	Seal	FKM
	Contact surface	Au
	Flammability	HB
Cable
	Core insulation	PVC
