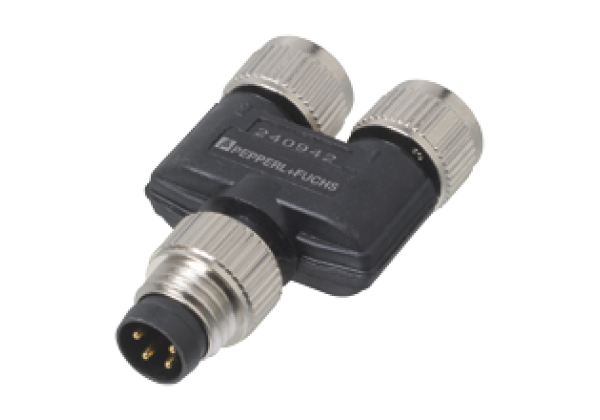

Y-Splitter V31S-T-V3
Brand: Pepperl+Fuchs
Code: V31S-T-V3
Y-Splitter M8 plug 4-pin to 2x M8 socket 3-pin
Datasheet excerpt: Technical data of V31S-T-V3
| Product Description |
|---|
| Y-Splitter M8 plug 4-pin to 2x M8 socket 3-pin |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 3 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 3 | |
| Coding | A-coded | |
| Connector 3 | ||
| Connection | plug | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 | |
| Ambient conditions | ||
| Ambient temperature | -25... 90 °C (-13... 194 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.2 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP65/IP67 | |
| Material | ||
| Plug connector | ||
| Body | TPU, black | |
| Seal | NBR | |
| Contact surface | Ni/Au | |
| Flammability | HB | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440106 |
| ECLASS 12.0 | 27440106 |
| ECLASS 11.0 | 27440106 |
| ECLASS 10.0.1 | 27440106 |
| ECLASS 9.0 | 27440106 |
| ECLASS 8.0 | 27440312 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003558 |
| ETIM 8.0 | EC002925 |
| ETIM 7.0 | EC002925 |
| ETIM 6.0 | EC002925 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
