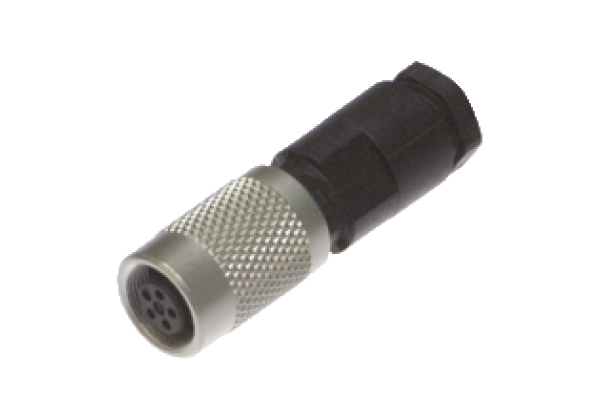

Female cordset, field attachable V35-G
Brand: Pepperl+Fuchs
Code: V35-G
Female connector, M9, 5-pin, field attachable
Datasheet excerpt: Technical data of V35-G
| Product Description |
|---|
| Female connector, M9, 5-pin, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 5 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M9 | |
| Electrical specifications | ||
| Operating voltage | max. 125 V DC | |
| Test voltage | > 1500 V eff AC | |
| Operating current | max. 3 A | |
| Volume resistance | < 3 mΩ | |
| Ambient conditions | ||
| Ambient temperature | -40... 85 °C (-40... 185 °F) | |
| Pollution degree | 1 | |
| Mechanical specifications | ||
| Contact elements | spring-loaded contact socket | |
| Degree of protection | IP67 | |
| Connection | Cable cross-section: 0.25 mm2 soldering pins | |
| Material | ||
| Contacts | CuSn | |
| Contact surface | Au | |
| Body | PA 66 , black | |
| Slotted nut | CuZn, nickel-plated | |
| Cable | ||
| Sheath diameter | 3.5... 5 mm | |
| Mass | approx. 18 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
