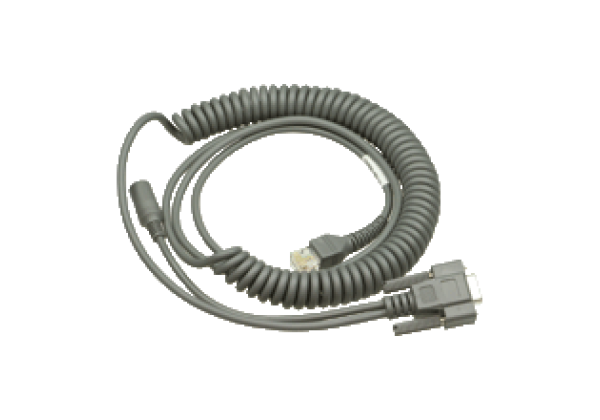

Adapter cable, RJ50 to RS 232 V45-G-2M-PVC-SUBD9
Brand: Pepperl+Fuchs
Code: V45-G-2M-PVC-SUBD9
Adapter cable, RJ50 to RS 232
Datasheet excerpt: Technical data of V45-G-2M-PVC-SUBD9
| Product Description |
|---|
| Adapter cable, RJ50 to RS 232 |
| General specifications | ||
|---|---|---|
| Number of pins | 6 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Connection 2 | Male connector | |
| Construction type 2 | straight | |
| Input | ||
| Input voltage | 5 V DC | |
| Mechanical specifications | ||
| Core cross-section | 0.14 mm2 | |
| Connection | RS 232: 9-pin Sub-D socket Supply voltage: 5.5 mm hollow socket RJ-50 , 10-pin | |
| Cable | ||
| Color | black | |
| Cores | 6 x 0.14 mm2 | |
| Shield | grid | |
| Length | Coiled Cable: 1.7 m / 3,3 m stretched | |
| Mass | approx. 170 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060390 |
| ECLASS 12.0 | 27060390 |
| ECLASS 11.0 | 27060390 |
| ECLASS 10.0.1 | 27060390 |
| ECLASS 9.0 | 27060390 |
| ECLASS 8.0 | 27060390 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC000310 |
| ETIM 8.0 | EC000310 |
| ETIM 7.0 | EC000310 |
| ETIM 6.0 | EC000310 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
