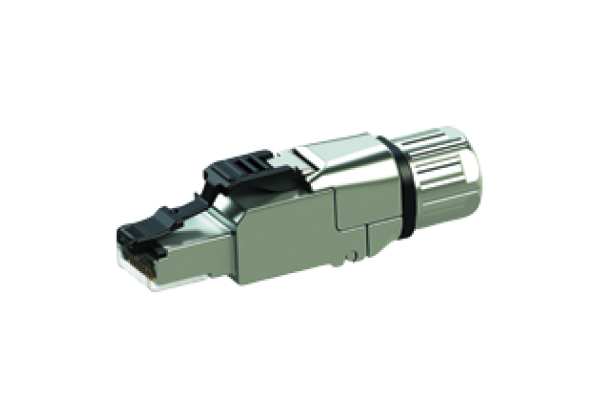

Male connector, field-attachable V45-G-ABG

Male connector, field-attachable V45-G-ABG

Code: V45-G-ABG

Male connector RJ45 straight 8-pin, Cat6A, shielded, field-attachable, insulation displacement connection

Datasheet excerpt: Technical data of  V45-G-ABG

Product Description
Male connector RJ45 straight 8-pin, Cat6A, shielded, field-attachable, insulation displacement connection
General specifications
Connector 1
Connectionplug
Construction typeRJ45
Stylestraight
Lockingsnap locking
Number of pins8
Electrical specifications
Operating voltagemax. 50 V AC / 60 V DC
Operating currentmax. 1 A
Contact resistancemax. 20 mΩ
Insulation resistancemin. 500 MΩ
Conformity
Degree of protectionEN 60529
Fieldbus standardIEEE 802.3an 10GBASE-T
Transmission technologysuitable for PoE+ Power over Ethernet IEEE 802.3at
Plug connectionconnector RJ45 : IEC 60603-7-51
Component categoryCAT6A (IEC 11801, EN 50173)
Ambient conditions
Ambient temperature-40... 85 °C (-40... 185 °F)
Mechanical specifications
Plug connector
Loosening protectionavailable
Mating cyclesmin. 750
Shieldingvia Body
Degree of protectionIP20
ConnectionWire manager included with delivery
Cable
Sheath diameter5.5... 10 mm
Core cross sectionsolid: 0.51... 0.64 mm2 (24... 22/1 AWG)
stranded: 0.46... 0.76 mm2 (27... 22/7 AWG)
Material
Plug connector
BodyZinc diecast, nickel-plated
Contact surfaceAu / Ni

Classifications

SystemClasscode
ECLASS 13.027440103
ECLASS 12.027440103
ECLASS 11.027440102
ECLASS 10.0.127440102
ECLASS 9.027440102
ECLASS 8.027440104
ECLASS 5.127279201
ETIM 9.0EC002635
ETIM 8.0EC002635
ETIM 7.0EC002635
ETIM 6.0EC002635
ETIM 5.0EC002585
UNSPSC 12.131251501
