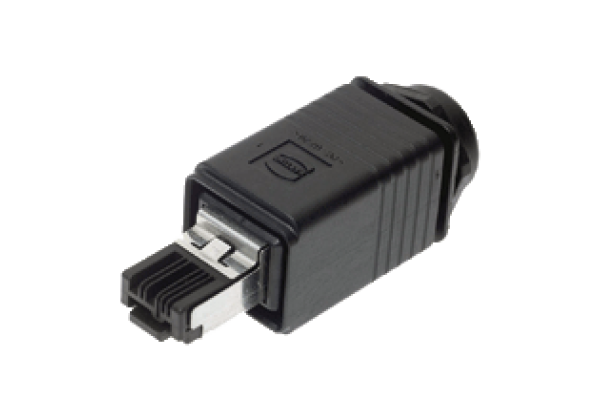

Male connector, field-attachable V45-GP
Brand: Pepperl+Fuchs
Code: V45-GP
Male connector RJ45 straight 4-pin, Cat5, shielded, field-attachable, insulation displacement connection, Outdoor
Datasheet excerpt: Technical data of V45-GP
| Product Description |
|---|
| Male connector RJ45 straight 4-pin, Cat5, shielded, field-attachable, insulation displacement connection, Outdoor |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | RJ45 | |
| Style | straight | |
| Locking | Push/pull | |
| Number of pins | 4 | |
| Electrical specifications | ||
| Operating voltage | max. 50 V AC / 60 V DC | |
| Operating current | max. 1 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Transmission technology | Cat. 5 Class D up to 100 MHz | |
| Plug connection | connector RJ45 : IEC 61076-3-106 V4 | |
| Component category | CAT5 (IEC 11801) | |
| Ambient conditions | ||
| Ambient temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Plug connector | ||
| Loosening protection | available | |
| Mating cycles | min. 750 | |
| Shielding | via Body | |
| Degree of protection | IP67 | |
| Cable | ||
| Sheath diameter | 4.9... 8.6 mm | |
| Core cross section | solid: 0.26... 0.32 mm2 (23... 22 AWG) stranded: 0.22... 0.32 mm2 (24... 22 AWG) | |
| Material | ||
| Plug connector | ||
| Body | thermoplastic, black | |
| Flammability | V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440114 |
| ECLASS 12.0 | 27440114 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
