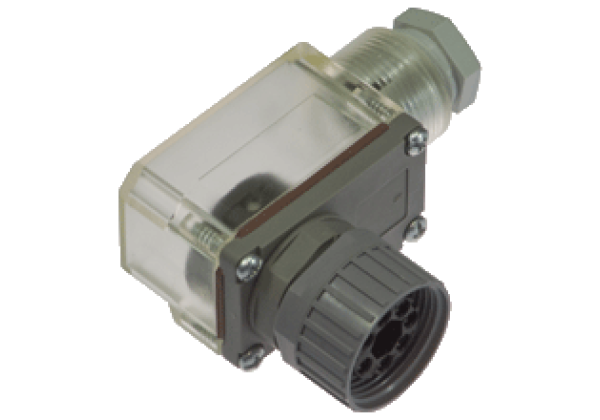

Female cordset, field attachable V7-W
Brand: Pepperl+Fuchs
Code: V7-W
Female connector, 6-pin+PE, field attachable
Datasheet excerpt: Technical data of V7-W
| Product Description |
|---|
| Female connector, 6-pin+PE, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 6 + PE | |
| Connection 1 | socket | |
| Construction type 1 | right angle | |
| Color | grey | |
| Electrical specifications | ||
| Operating voltage | max. 253 V AC/DC | |
| Operating current | max. 10 A | |
| Volume resistance | < 5 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Insulation coordination | DIN EN 60664-1 | |
| Degree of protection | IEC 60529 | |
| Standards | Design standard DIN EN 175201-804 | |
| Ambient conditions | ||
| Ambient temperature | -40... 90 °C (-40... 194 °F) Note derating | |
| Mechanical specifications | ||
| Contact elements | spring-loaded contact socket | |
| Degree of protection | IP65 | |
| Connection | screw terminals 0,5... 1.5 mm2 PG11 cable gland | |
| Material | ||
| Contacts | CuZn | |
| Contact surface | Ag | |
| Housing | PA 6 GF30 cover PA T | |
| Body | PET | |
| Slotted nut | PA 66 | |
| Seal | NBR | |
| Mounting screw | PA 6 GF | |
| Cable | ||
| Sheath diameter | 7 mm ... 9 mm | |
| Flammability | Enclosure: UL 94 HB contact carrier: UL 94 V-0 cover: UL 94 HB pressure screw: UL 94 HB coupling nut UL 94 V-2 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
