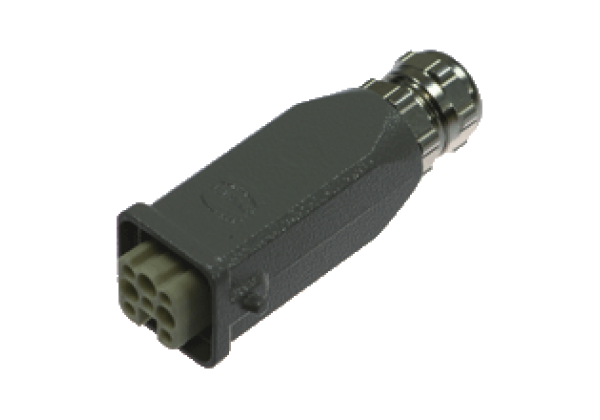

Female cordset, field attachable V8HAN-G
Brand: Pepperl+Fuchs
Code: V8HAN-G
Female connector, Harting, 8-pin, field attachable
Datasheet excerpt: Technical data of V8HAN-G
| Product Description |
|---|
| Female connector, Harting, 8-pin, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 8 | |
| Construction type | Socket, straight Harting Han 8D, size 3 A | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Electrical specifications | ||
| Rated operating voltage | 230/400 V | |
| Operating voltage | 50 V | |
| Operating current | 10 A | |
| Volume resistance | < 3 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | -40... 125 °C (-40... 257 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Pin diameter | 1 mm | |
| Degree of protection | IP65 | |
| Connection | 8 jacks, Harting 8 D Crimp connection for max. ∅1.1 mm, 8 mm stripped insulation PG11 cable gland | |
| Material | ||
| Contacts | Cu alloy | |
| Contact surface | Au | |
| Body | aluminum and polycarbonate | |
| Flammability | ||
| Housing | 94 V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
