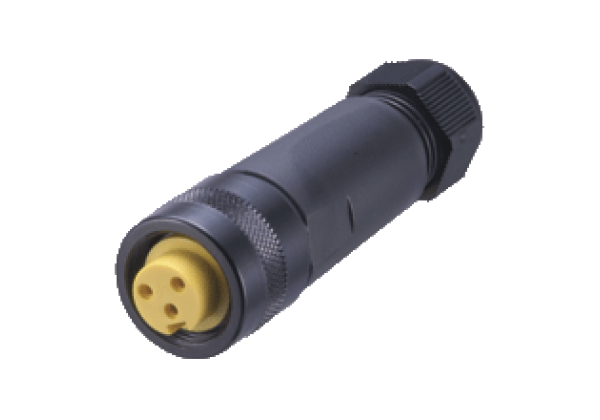

Female cordset, field attachable V93-G
Brand: Pepperl+Fuchs
Code: V93-G
Female connector, 7/8" - 16 UN2B, 3-pin, field attachable
Datasheet excerpt: Technical data of V93-G
| Product Description |
|---|
| Female connector, 7/8" - 16 UN2B, 3-pin, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 3 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | 7/8" | |
| Electrical specifications | ||
| Operating voltage | max. 600 V | |
| Operating current | max. 18 A | |
| Volume resistance | < 5 mΩ | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -40... 90 °C (-40... 194 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 1 x 7/8" - 16 UN2B ; Socket, straight , screw terminal for 14 - 22 AWG | |
| Material | ||
| Contacts | gold plated Cu alloy | |
| Body | Polyamide (PA) | |
| Slotted nut | black anodized aluminum | |
| Sleeve connector | yellow PVC | |
| Cable | ||
| Sheath diameter | 5... 13 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
