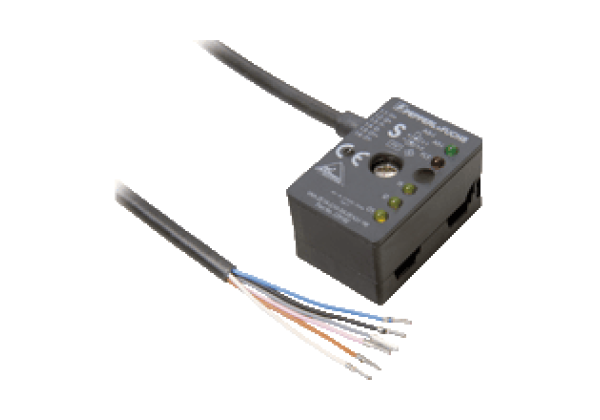

AS-Interface safety module VAA-2E1A-G10-SAJ/EA2J-1M
Brand: Pepperl+Fuchs
Code: VAA-2E1A-G10-SAJ/EA2J-1M
G10 safety module
2 safety inputs and
1 standard electronic output
Datasheet excerpt: Technical data of VAA-2E1A-G10-SAJ/EA2J-1M
| Product Description |
|---|
| G10 safety module 2 safety inputs and 1 standard electronic output |
| General specifications | ||
|---|---|---|
| Node type | Safety-Slave | |
| AS-Interface specification | V3.0 | |
| Required master specification | ≥ V2.1 | |
| UL File Number | E223772 "For use in NFPA 79 Applications only" | |
| Indicators/operating means | ||
| LED FLT | error display; LED red red: communication error or address is 0 | |
| LED AS-i | AS-Interface voltage; green LED green: voltage OK flashing green: address 0 | |
| LED IN | switching state (input); 2 LED yellow | |
| LED OUT | Switching state (output); LED yellow | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface (PELV) | |
| Rated operating current | ≤ 90 mA | |
| Protection class | III | |
| Surge protection | overvoltage category III | |
| Rated insulation voltage | 32 V | |
| Pulse withstand voltage | 0.8 kV | |
| Input | ||
| Number/Type | 2 safety-related inputs for mechanical contacts, crossed-circuit monitored: 2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or 1 2-channel contact: up to category 4/PL e to ISO 13849-1 | |
| Supply | from AS-Interface | |
| Voltage | 20... 30 V DC pulsed | |
| Current | input current limited ≤ 15 mA, short-circuit protected | |
| Output | ||
| Number/Type | 1 conventional electronic output, PNP | |
| Supply | from AS-Interface | |
| Voltage | (UASI - 7.0 V) ≤ UOUT ≤ UASI | |
| Current | 50 mA , short-circuit/overload protected | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 62026-2:2013 | |
| Electrical safety | IEC 61140:2009 | |
| Emitted interference | EN 61000-6-4:2007 | |
| AS-Interface | EN 62026-2:2013 | |
| Noise immunity | IEC 62026-2:2013 EN 62061:2005 EN 61000-6-2:2005 | |
| Functional safety | EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 | |
| Programming instructions | ||
| Profile | S-7.B | |
| IO code | 7 | |
| ID code | B | |
| ID1 code | F | |
| ID2 code | 0 | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | communication monitoring P0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Type 1 enclosure | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) | |
| Storage temperature | -25... 80 °C (-13... 176 °F) | |
| Relative humidity | < 95 % | |
| Altitude | ≤ 2000 m above MSL | |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks 10 g, 16 ms in 6 spatial directions 1000 shocks | |
| Vibration resistance | 0.75 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 This protection class is achieved by using the AS-Interface flat cable VAZ-FK-S-YE | |
| Connection | AS-Interface: AS-Interface flat cable Inputs/outputs: open conductor ends | |
| Material | ||
| Contacts | open conductor ends with connector sleeves | |
| Housing | PBT | |
| Cable | PUR | |
| Mounting screw | Stainless steel 1.4305 / AISI 303 | |
| Cable | ||
| Sheath diameter | ∅4.8 mm | |
| Bending radius | > 8 x cable diameter, fixed > 10 x cable diameter, moving not appropriate for conveyor chains | |
| Color | black | |
| Cores | 6 x 0.25 mm2 | |
| Length | 1 m | |
| Mass | 200 g | |
| Tightening torque, fastening screws | 1.65 Nm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272603 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
