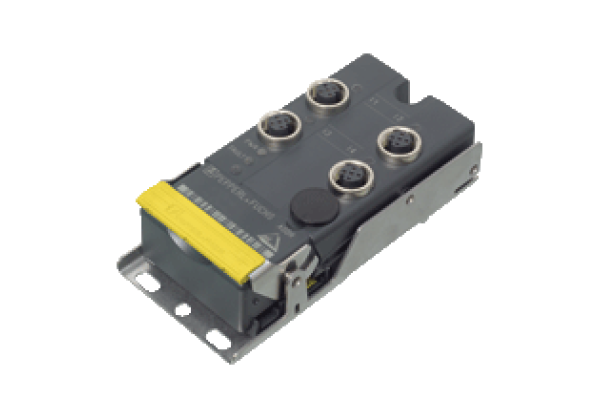

AS-Interface safety module VAA-2E2A-G12-SAJ/EA2L
Brand: Pepperl+Fuchs
Code: VAA-2E2A-G12-SAJ/EA2L
G12 safety module, 2 safety inputs and 2 standard electronic outputs
Datasheet excerpt: Technical data of VAA-2E2A-G12-SAJ/EA2L
| Product Description |
|---|
| G12 safety module, 2 safety inputs and 2 standard electronic outputs |
| General specifications | ||
|---|---|---|
| Node type | Safety node | |
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V2.1 | |
| Profile | S-7.B | |
| IO code | 7 | |
| ID code | B | |
| ID1 code | F | |
| ID2 code | 0 | |
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| MTTFd | no significant contribution to MTTFd of the overall system | |
| PFHd | no significant contribution to PFH of the overall system | |
| PFD | no significant contribution to PFD of the overall system | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: Output supply overload | |
| LED PWR | AS-Interface voltage; green LED green: voltage OK flashing green: address 0 | |
| LED AUX | ext. auxiliary voltage UAUX; dual LED green/red green: voltage OK red: reverse voltage | |
| LED IN | switching state (input); 2 LED yellow | |
| LED OUT | Switching status (output); 2 yellow/red LEDs Yellow: output active Red: output overload | |
| Electrical specifications | ||
| Auxiliary voltage (output) | 24 V DC ± 15 % PELV | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 50 mA | |
| Protection class | III | |
| Surge protection | UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV) derived from mains up to 300 V AC line-to-neutral | |
| Rated insulation voltage | 40 V | |
| Pulse withstand voltage | 0.5 kV | |
| Input | ||
| Number/Type | 2 safety-related inputs for mechanical contacts, crossed-circuit monitored: 2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or 1 2-channel contact: up to category 4/PL e to ISO 13849-1 Cable length must not exceed 300 m per input. | |
| Supply | from AS-Interface | |
| Voltage | 20... 30 V DC pulsed | |
| Current loading capacity | input current limited ≤ 15 mA, overload and short-circuit resistant | |
| Output | ||
| Number/Type | 2 conventional electronic outputs, PNP | |
| Supply | from external auxiliary voltage UAUX | |
| Voltage | ≥ (UAUX - 0.5 V) | |
| Current | 1.5 A per output , short-circuit protected | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013+A1:2019 IEC 60947-5-3:1999 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN ISO 13849-1:2008 + AC:2009 EN ISO 13849-2:2012 EN 62061:2005 | |
| Standard conformity | ||
| Insulation coordination | EN 60947-1:2007 | |
| Degree of protection | EN 60529:2000 | |
| Fieldbus standard | EN 62026-2:2013 | |
| Electrical safety | IEC 60947-1, NFPA 79, IEC 60204-1:2007 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| AS-Interface | EN 62026-2:2013+A1:2019 | |
| Noise immunity | IEC 62026-2:2008 EN 62061:2005 EN 61000-6-2:2005 | |
| Functional safety | ISO 13849-1 (up to category 4/PL e), IEC 61508/IEC 62061 (up to SIL3) | |
| Standards | NFPA 79:2007 ER 1 | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Relative humidity | 85 % , noncondensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions 3 shocks 10 g, 16 ms in 6 spatial directions 1000 shocks | |
| Vibration resistance | 0.75 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Cable piercing method flat cable yellow/flat cable black inputs/outputs: M12 round connector | |
| Material | ||
| Housing | PBT | |
| Mass | 200 g | |
| Tightening torque, cable gland | 0.4 Nm | |
| Mounting | Mounting plate | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272603 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
