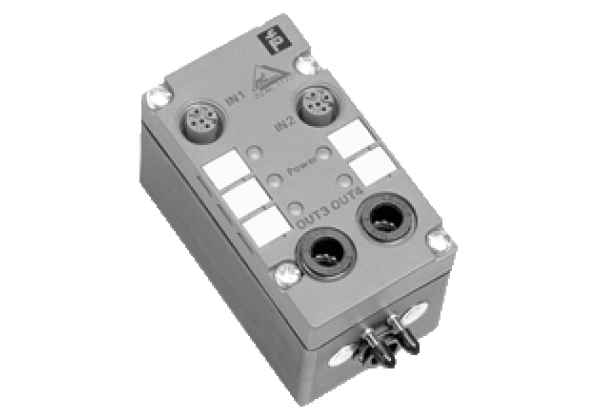

AS-Interface pneumatic module VAA-2EA-G1-ZE/P-V2A
Brand: Pepperl+Fuchs
Code: VAA-2EA-G1-ZE/P-V2A
Pneumatic module
2 inputs/2 pneumatic outputs
Datasheet excerpt: Technical data of VAA-2EA-G1-ZE/P-V2A
| Product Description |
|---|
| Pneumatic module 2 inputs/2 pneumatic outputs |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| Indicators/operating means | ||
| LED AS-i | AS-Interface voltage; LED green | |
| LED IN | switching state (input); 2 LED yellow | |
| LED OUT | Switching state (output); 2 LED yellow | |
| Electrical specifications | ||
| Rated operating voltage | 29.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 45 mA (without sensors) | |
| Input | ||
| Number/Type | 2 inputs for 2- or 3-wire sensors (PNP), DC | |
| Supply | from AS-Interface | |
| Current loading capacity | ≤ 100 mA, short-circuit protected | |
| Switching point | OFF: ≤ 1.5 mA ON: ≥ 5 mA, ≥ 10 V | |
| Output | ||
| Number/Type | 2 pneumatic outputs with separated 3/2-way valves | |
| Pneumatic output | ||
| Venting guide | Connector | |
| Compressed air | 2... 8 bar, filtered (5 µm), oiled or unoiled compressed air | |
| Air throughput | 400 l/min | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-3.F | |
| IO code | 3 | |
| ID code | F | |
| ID1 code | F | |
| ID2 code | F | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -20... 85 °C (-4... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 | |
| Connection | cable piercing methos or terminals flat cable or standard round cable inputs: M12 x 1 quick disconnect outputs: plug-in hose connector (8 mm) | |
| Mass | approx. 200 g | |
| Mounting | DIN rail or screw mounting | |
