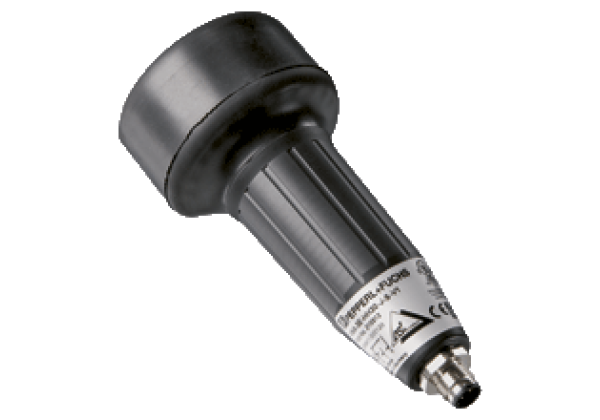

AS-Interface enabling switch VAA-3E-HH30-J-S-V1
Brand: Pepperl+Fuchs
Code: VAA-3E-HH30-J-S-V1
AS-Interface enabling switch, 3-layered
Datasheet excerpt: Technical data of VAA-3E-HH30-J-S-V1
| Product Description |
|---|
| AS-Interface enabling switch, 3-layered |
| General specifications | ||
|---|---|---|
| Node type | Safety-Slave | |
| AS-Interface specification | V2.1 | |
| Required master specification | ≥ V2.0 | |
| Switching principle | slow-acting contact element, 3-stage | |
| UL File Number | E179102 | |
| Functional safety related parameters | ||
| Performance level (PL) | PL d | |
| B10d | 1 E+5 | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 45 mA | |
| Rated insulation voltage | 50 V | |
| Input | ||
| Number/Type | 2 safety-related inputs: NO E1 NO E2 | |
| Supply | from AS-Interface | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Functional safety | DIN EN 954-1, EN ISO 13849-1 (up to PLd) | |
| Programming instructions | ||
| Profile | S-0.B | |
| IO code | 0 | |
| ID code | B | |
| ID1 code | F | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | Input | |
| D0 | dyn. safety code 1 | |
| D1 | dyn. safety code 1 | |
| D2 | dyn. safety code 2 | |
| D3 | dyn. safety code 2 | |
| Ambient conditions | ||
| Ambient temperature | -5... 50 °C (23... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | M12 x 1 connector | |
| Material | ||
| Housing | Polyamide (PA) | |
| Protective cover | Neoprene | |
| Mass | approx. 140 g (without conduction) | |
| Life span | 105 cycles | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371228 |
| ECLASS 12.0 | 27371228 |
| ECLASS 11.0 | 27371228 |
| ECLASS 10.0.1 | 27371228 |
| ECLASS 9.0 | 27371228 |
| ECLASS 8.0 | 27371228 |
| ECLASS 5.1 | 27371228 |
| ETIM 9.0 | EC001028 |
| ETIM 8.0 | EC001028 |
| ETIM 7.0 | EC001028 |
| ETIM 6.0 | EC001028 |
| ETIM 5.0 | EC001028 |
| UNSPSC 12.1 | 39121533 |
