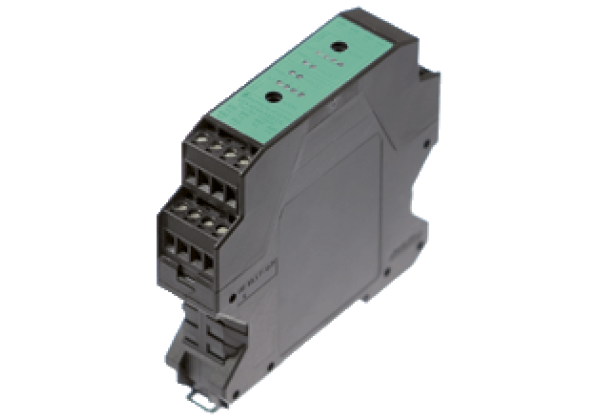

AS-Interface data coupler VAA-4E4A-KE2-DK
Brand: Pepperl+Fuchs
Code: VAA-4E4A-KE2-DK
Control cabinet module
Data coupler
Datasheet excerpt: Technical data of VAA-4E4A-KE2-DK
| Product Description |
|---|
| Control cabinet module Data coupler |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| AS-Interface specification | V3.0 | |
| Required master specification | ≥ V2.0 | |
| Indicators/operating means | ||
| LED FAULT | error display; LED red red: communication error or address is 0 red flashing: overload of outputs | |
| LED PWR | AS-Interface voltage; 2 LED green | |
| LED OUT | Switching state (output); 8 LED yellow O10-O13: AS-Interface 1; O20-O23: AS-Interface 2 | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 80 mA | |
| Input | ||
| Number/Type | 4 internal inputs per AS-Interface circuit 1+2 | |
| Output | ||
| Number/Type | 4 internal outputs per AS-Interface circuit 1+2 | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2001 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2001, EN 50295:1999 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-7.F.F | |
| IO code | 7 | |
| ID code | F | |
| ID1 code | F | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | The output of AS-Interface 1 is the input to AS-Interface 2 The output of AS-Interface 2 is the input to AS-Interface 1 | |
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals, terminal connection ≤ 2.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 130 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
