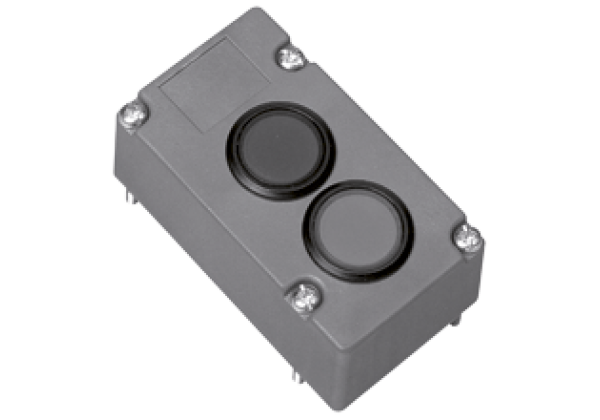

AS-Interface pushbutton module VAA-LT2-G1

Code: VAA-LT2-G1

Illuminated pushbutton module

Datasheet excerpt: Technical data of VAA-LT2-G1

Product Description
Illuminated pushbutton module

General specifications
Node type		Standard node
Indicators/operating means
Button		2 integrated, protected against accidental activation, keys can be individually labelled, labeling field on the module
Electrical specifications
Rated operating voltage		26.5... 31.6 V from AS-Interface
Rated operating current		≤ 55 mA (LEDs on)
Protection class		III
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013
Standard conformity
Degree of protection		EN 60529:2000
AS-Interface		EN 62026-2:2013
Programming instructions
Profile		S-3.F
IO code		3
ID code		F
Data bits (function via AS-Interface)		input output
	D0	Button 2 red -
	D1	Button 1 green -
	D2	- LED 2 red
	D3	- LED 1 green
Parameter bits (programmable via AS-i)		function
	P0	not used
	P1	not used
	P2	not used
	P3	not used
Ambient conditions
Ambient temperature		-25... 60 °C (-13... 140 °F)
Storage temperature		-40... 85 °C (-40... 185 °F)
Mechanical specifications
Degree of protection		IP67 according to EN 60529
Connection		cable piercing method or terminal compartment flat cable or standard round cable
