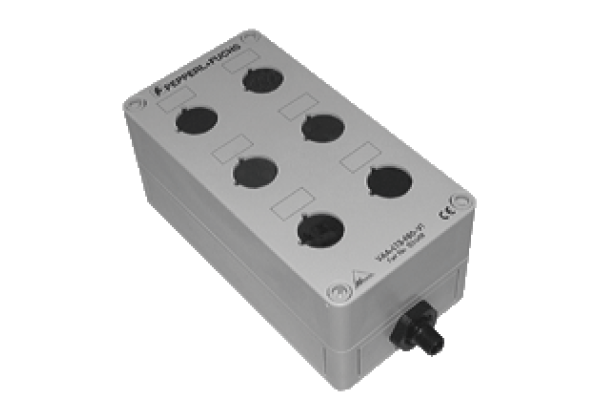

ASi illuminated button module VAA-LT3-F86-V1
Brand: Pepperl+Fuchs
Code: VAA-LT3-F86-V1
Luminous push-button module, 4 inputs/4outputs
Datasheet excerpt: Technical data of VAA-LT3-F86-V1
| Product Description |
|---|
| Luminous push-button module, 4 inputs/4outputs |
| General specifications | ||
|---|---|---|
| Node type | Standard node | |
| AS-Interface specification | V2.0 | |
| Required gateway specification | ≥ V2.0 | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 30 mA (without sensors) / max. 180 mA | |
| Protection class | III | |
| Input | ||
| Number/Type | 4 inputs for mechanical contacts | |
| Supply | from AS-Interface | |
| Voltage | 21... 31 V | |
| Input current | ≤ 8 mA (limited internally) | |
| Switching point | according to EN 61131-2 Typ 1 | |
| 0 (unattenuated) | ≤ 1.5 mA | |
| 1 (attenuated) | ≥ 4 mA | |
| Output | ||
| Number/Type | 4 electronic outputs, PNP | |
| Supply | from AS-Interface | |
| Voltage | 21... 31 V | |
| Current | ≤ 100 mA per output, ≤ 140 mA total | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-7.0 | |
| IO code | 7 | |
| ID code | 0 | |
| ID1 code | F | |
| ID2 code | E | |
| Data bits (function via AS-Interface) | ||
| D0 | ||
| D1 | ||
| D2 | ||
| D3 | ||
| Parameter bits (programmable via AS-i) | function | |
| P0 | not used | |
| P1 | not used | |
| P2 | not used | |
| P3 | not used | |
| Ambient conditions | ||
| Ambient temperature | -25... 40 °C (-13... 104 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 in accordance with EN 60529 (with corresponding displays and controls) | |
| Connection | M12 round connector | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371228 |
| ECLASS 12.0 | 27371228 |
| ECLASS 11.0 | 27371228 |
| ECLASS 10.0.1 | 27371228 |
| ECLASS 9.0 | 27371228 |
| ECLASS 8.0 | 27371228 |
| ECLASS 5.1 | 27371228 |
| ETIM 9.0 | EC001028 |
| ETIM 8.0 | EC001028 |
| ETIM 7.0 | EC001028 |
| ETIM 6.0 | EC001028 |
| ETIM 5.0 | EC001028 |
| UNSPSC 12.1 | 39121533 |
