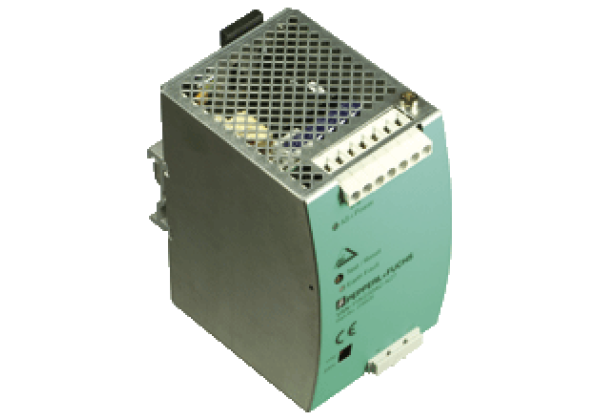

AS-Interface power supply VAN-115/230AC-K27
Brand: Pepperl+Fuchs
Code: VAN-115/230AC-K27
AS-Interface power supply, data decoupling, 4 A
Datasheet excerpt: Technical data of VAN-115/230AC-K27
| Product Description |
|---|
| AS-Interface power supply, data decoupling, 4 A |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| MTBF | 100 a | |
| Indicators/operating means | ||
| Reset push-button switch | earth fault simulation/reset of earth fault display | |
| LED EFD | earth fault display; LED red | |
| LED AS-i ok | LED green: ON: AS-Interface voltage OK OFF: overload or no supply voltage | |
| Electrical specifications | ||
| Fusing | T3A 15/250 V HBC (not accessible) | |
| Rated operating voltage | 85 … 132 VAC 184 … 264 VAC 240 … 300 VDC | |
| Rated operating current | 2.7 A at 115 VAC 1.3 A at 230 VAC | |
| Supply frequency | 47... 63 Hz (alternatively, DC possible) | |
| Efficiency | typ. 90 % (230 VAC, 4 A) | |
| Galvanic isolation | SELV/PELV | |
| Peak inrush current | < 3.7 A2s (120 VAC) < 4.6 A2s (132 VAC) < 2.5 A2s (230 VAC) < 3.3 A2s (264 VAC) | |
| Output | ||
| Short-circuit protection/overload | > 4,2 A < 6.5 A | |
| Current limit | starts at > 4.2 A | |
| Voltage | 30.5 VDC ±3 % fixed | |
| Current | 4 A | |
| Residual ripple | < 50 mVSS (500 kHz bandwidth, 50 Ω measurement, with resistive load) | |
| Overvoltage protected | limited to max. 55 V | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 55022:2006, EN 55011:2009 Class B EN 61000-6-3:2001 , EN 61204-3:2001 | |
| Standard conformity | ||
| Noise immunity | EN 61000-6-2:2005 | |
| Emitted interference | EN 61000-6-3:2007 EN 61000-3-2:2010 EN 61000-3-3:2009 | |
| Galvanic isolation | IEC 60364-4-41:2005 (PELV) IEC 60950:1999 (SELV) | |
| Degree of protection | IEC 60529:2001 | |
| Pollution degree | EN 50178:1997 | |
| Mech. capacity | EN 60068-2-6:2008 (Sinus) EN 60068-2-64:2009 (Random) | |
| Shock and impact resistance | EN 60068-2-27:1995 | |
| Ambient conditions | ||
| Ambient temperature | -10... 70 °C (14... 158 °F) Note derating | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Shock and impact resistance | 15g/6 ms 10g/11 ms | |
| Vibration resistance | Sine 2 - 17.8 Hz: ± 1.6 mm Sine 17.8... 500 Hz : 2 g Random 2 … 500 Hz: 0.5 m2 (s³) | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Protection class | 1 (IEC 60536); Protective conductor connection necessary | |
| Connection | Connection terminals, max. conductor cross-section Flexible cable: 0.5 … 4 mm2 Rigid cable: 0.5 … 6 mm2 Stripping length 7 mm | |
| Mass | 650 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 6.0 | EC002540 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121004 |
