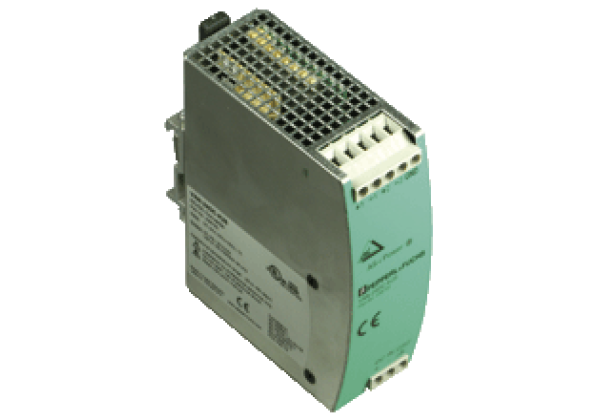

AS-Interface power supply VAN-24DC-K28
Brand: Pepperl+Fuchs
Code: VAN-24DC-K28
AS-Interface power supply, data decoupling, 4 A, 24 V DC input voltage
Datasheet excerpt: Technical data of VAN-24DC-K28
| Product Description |
|---|
| AS-Interface power supply, data decoupling, 4 A, 24 V DC input voltage |
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| MTBF | 100 a | |
| Indicators/operating means | ||
| LED AS-i ok | LED green: ON: AS-Interface voltage OK OFF: overload or no supply voltage | |
| Electrical specifications | ||
| Fusing | T10A HBC (not accessible) | |
| Rated operating voltage | 24 VDC 18... 32,4 VDC (continuous operation) 14... 18 VDC (max. 60 s or with derating) max. 36 VDC (max. continuous input voltage with no damage to the DC/DC converter) | |
| Rated operating current | 5.6 A at 24 VDC | |
| Efficiency | typ. 90.5 % (24 VDC, 4 A) | |
| Output | ||
| Short-circuit protection/overload | > 5 A < 9 A | |
| Current limit | > 4.4 A | |
| Voltage | 30.55 VDC ±3 % fixed | |
| Current | 4 A | |
| Residual ripple | < 50 mVSS (500 kHz bandwidth, 50 Ω measurement, with resistive load) | |
| Voltage limitation | max. 36 V | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 2004/108/EC | EN 55022:2006, EN 55011:2009 Class B EN 61000-6-3:2001 , EN 61204-3:2001 | |
| Standard conformity | ||
| Noise immunity | EN 61000-6-2:2005 | |
| Emitted interference | EN 61000-6-3:2007 EN 61000-3-2:2010 EN 61000-3-3:2009 | |
| Galvanic isolation | IEC 60364-4-41:2005 (PELV) IEC 60950:1999 (SELV) | |
| Degree of protection | IEC 60529:2001 | |
| Pollution degree | EN 60950-1:2006 | |
| Shock and impact resistance | EN 60068-2-27:1995 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) note derating | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Shock and impact resistance | 30g/6 ms 20g/11 ms | |
| Vibration resistance | Sine 2 - 17.8 Hz: ± 1.6 mm Sine 17.8... 500 Hz : 2 g | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Protection class | 1 (IEC 60536); Protective conductor connection necessary | |
| Connection | Connection terminals, max. conductor cross-section Flexible cable: 0.5 … 4 mm2 Rigid cable: 0.5 … 6 mm2 Stripping length 7 mm | |
| Mass | approx. 500 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 6.0 | EC002540 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121004 |
