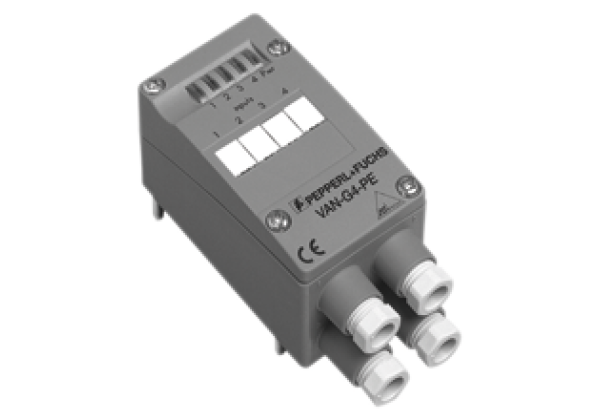

AS-Interface power supply VAN-G4-PE-4A
Brand: Pepperl+Fuchs
Code: VAN-G4-PE-4A
AS-Interface power extender
Datasheet excerpt: Technical data of VAN-G4-PE-4A
| Product Description |
|---|
| AS-Interface power extender |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Indicators/operating means | ||
| LED U AS-i | AS-Interface voltage on the output is displayed in two stages: AS-Interface voltage > 28 V; LED green AS-Interface voltage > 26 V; LED green | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 30 V DC | |
| Rated operating current | 4 A at 30 V | |
| Input | ||
| Line fault detection | 6 A self resetting fuse | |
| Output | ||
| Voltage | 29.5... 31.6 V DC | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2, EN 61000-6-4 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Ambient conditions | ||
| Ambient temperature | 0... 70 °C (32... 158 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | standard AS-Interface EEMS base, i. e. cable piercing method screwed connection M12 x 1,5 and cage-clamp terminals | |
| Material | ||
| Housing | PA 6 GF30 | |
| Mass | 120 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121535 |
