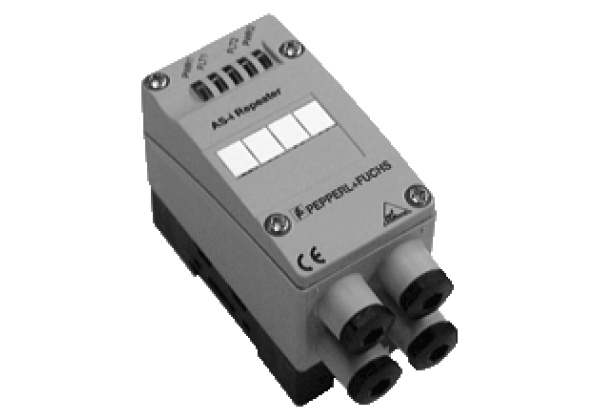

AS-Interface repeater VAR-G4F
Brand: Pepperl+Fuchs
Code: VAR-G4F
AS-Interface Advanced Repeater
Datasheet excerpt: Technical data of VAR-G4F
| Product Description |
|---|
| AS-Interface Advanced Repeater |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| MTTFd | 160 a at 30 °C | |
| Indicators/operating means | ||
| LED FLT | error display; LED red red: communication error | |
| LED PWR | AS-Interface voltage; LED green | |
| Electrical specifications | ||
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | 60 mA (per strand element), 120 mA (total) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2001 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Ambient conditions | ||
| Ambient temperature | -10... 55 °C (14... 131 °F) | |
| Storage temperature | -25... 75 °C (-13... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | cable piercing method flat cable yellow | |
| Material | ||
| Housing | PA 6 GF30 | |
| Mounting | screw mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121535 |
