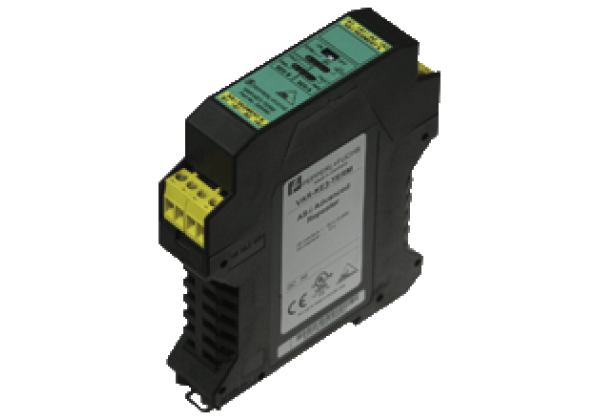

AS-Interface repeater VAR-KE3-TERM
Brand: Pepperl+Fuchs
Code: VAR-KE3-TERM
AS-Interface advanced repeater with terminator
Datasheet excerpt: Technical data of VAR-KE3-TERM
| Product Description |
|---|
| AS-Interface advanced repeater with terminator |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Required gateway specification | ≥ V2.0 | |
| UL File Number | E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source | |
| Functional safety related parameters | ||
| MTTFd | 155 a | |
| Indicators/operating means | ||
| Switch | TERM ON/OFF switches the segment A terminator on/off | |
| LED FAULT SEG A | Segment A error display; red LED red: communication error | |
| LED FAULT SEG B | Segment B error display; red LED red: communication error | |
| LED PWR SEG A | AS interface voltage segment A; green LED | |
| LED PWR SEG B | AS-Interface voltage segment B; green LED | |
| LED TERM | Segment A bus terminator switched on | |
| LED U>26V | Segment A voltage > 26 V | |
| LED U>18,5V | Segment A voltage > 18.5 V | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating voltage | 26.5... 31.6 V from AS-Interface | |
| Rated operating current | 60 mA (per strand element), 120 mA (total) | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61000-6-3:2001 IEC 62026-2:2008 | |
| Approvals and certificates | ||
| UL approval | An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device. | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 75 °C (-13... 167 °F) | |
| Mechanical specifications | ||
| Housing width | 22.5 mm | |
| Housing height | 99 mm | |
| Housing depth | 114 mm | |
| Degree of protection | IP20 according to EN 60529 | |
| Connection | removable terminals, terminal connection ≤ 2.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121535 |
