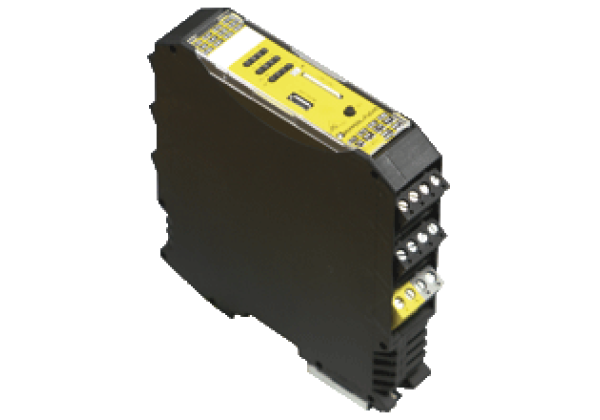

AS-Interface Safety Monitor VAS-2A8L-KE4-8SE
Brand: Pepperl+Fuchs
Code: VAS-2A8L-KE4-8SE
Safety Monitor, 8 decentralized output circuits
Datasheet excerpt: Technical data of VAS-2A8L-KE4-8SE
| Product Description |
|---|
| Safety Monitor, 8 decentralized output circuits |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Mission Time (TM) | 20 a | |
| PFHd | 5.08 E-9 | |
| Indicators/operating means | ||
| LED SM | Status of safety monitor, multicolored LED green: Safety monitor OK | |
| LED S1... S8 | Status of inputs S1... S8, yellow LED yellow: Contact open | |
| LED O1, O2 | Status of outlputs, multicolored LED yellow: Output on | |
| Electrical specifications | ||
| Auxiliary voltage (input) | 20... 30 VDC PELV | |
| Insulation voltage | 500 V AS-Interface/UAUX: | |
| Rated operating voltage | 18,0... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 200 mA from AS-Interface; ≤ 4 A from AUX | |
| Interface 1 | ||
| Interface type | Chip card slot | |
| Interface 2 | ||
| Interface type | Micro USB Programming interface | |
| Input | ||
| Number/Type | 8 / 4 safe inputs cat. 4 or 8 standard inputs | |
| Supply | 24 V UAUX | |
| Current loading capacity | 10 mA per signal output 1.4 A OSSD supply output | |
| Input current | Static switching current 4 mA at 24 V, dynamic 30 mA at 24 V (T=100 μs) | |
| Output | ||
| Number/Type | Output circuits 1 and 2 max. contact rating: 700 m ADC-13 at 24 V | |
| Supply | 24 V UAUX | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005/AC:2005 EN 61000-6-4:2007/A1:2011 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN 13849-1:2008/AC:2009 EN 62061:2005 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 50295:1999 EN 61000-6-2:2005/AC:2005 EN 61000-6-4:2007/A1:2011 | |
| Degree of protection | EN 60529:2000 | |
| Electrical safety | IEC 61508:2010 and EN 62061:2005 (up to SIL3) EN 13849-1:2008/AC:2009 EN 61326-3-1:2008 | |
| AS-Interface | EN 62026-2:2013 | |
| Programming instructions | ||
| Profile | S-0.B.E | |
| IO code | 0 | |
| ID code | B | |
| ID1 code | F | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27243101 |
| ECLASS 12.0 | 27243101 |
| ECLASS 11.0 | 27243101 |
| ECLASS 10.0.1 | 27243101 |
| ECLASS 9.0 | 27243101 |
| ECLASS 8.0 | 27279215 |
| ECLASS 5.1 | 27279215 |
| ETIM 9.0 | EC001449 |
| ETIM 8.0 | EC001449 |
| ETIM 7.0 | EC001449 |
| ETIM 6.0 | EC001449 |
| ETIM 5.0 | EC001449 |
| UNSPSC 12.1 | 39121535 |
