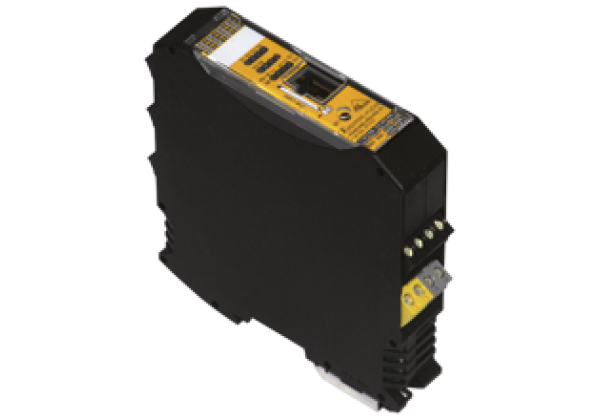

AS-Interface Safety Monitor VAS/M-2A8L-KE4-6SE-EV
Brand: Pepperl+Fuchs
Code: VAS/M-2A8L-KE4-6SE-EV
Safety monitor, three 2-channel secure inputs, two secure outputs
Datasheet excerpt: Technical data of VAS/M-2A8L-KE4-6SE-EV
| Product Description |
|---|
| Safety monitor, three 2-channel secure inputs, two secure outputs |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Data decoupling | integrated | |
| UL File Number | E223772 | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Mission Time (TM) | 20 a | |
| PFHd | 5.08 E-9 | |
| Indicators/operating means | ||
| LED AS-i M | Status of AS interface master, multicolored LED green: Master OK | |
| LED SM | Status of safety monitor, multicolored LED green: Safety monitor OK | |
| LED S1... S6 | Status of inputs S1... S6, yellow LED yellow: Contact open | |
| LED O1, O2 | Status of outlputs, multicolored LED yellow: Output on | |
| Electrical specifications | ||
| Auxiliary voltage (input) | 20... 30 VDC PELV | |
| Insulation voltage | 500 V AS-Interface/UAUX: | |
| Rated operating voltage | 18,0... 31.6 V from AS-Interface | |
| Rated operating current | ≤ 200 mA from AS-Interface; ≤ 4 A from AUX | |
| Interface 1 | ||
| Interface type | Chip card slot | |
| Interface 2 | ||
| Interface type | RJ-45 socket, 8-pin Ethernet Programming interface | |
| Input | ||
| Number/Type | 6 / 3 safe inputs cat. 4 or 6 standard inputs and outputs | |
| Supply | 24 V UAUX | |
| Current loading capacity | 10 mA per signal output | |
| Input current | Static switching current: 4 mA at 24 V. Dynamic switching current: 15 mA at 24 V (T=100 μs) | |
| Output | ||
| Number/Type | Output circuits 1 and 2 max. contact rating: 700 m ADC-13 at 24 V | |
| Supply | 24 V UAUX | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 62026-2:2013 EN 61000-6-2:2005/AC:2005 EN 61000-6-4:2007/A1:2011 | |
| Machinery Directive | ||
| Directive 2006/42/EC | EN 13849-1:2008/AC:2009 EN 62061:2005/A1:2013 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61326-3-1:2008 | |
| Degree of protection | EN 60529:2000 | |
| AS-Interface | EN 62026-2:2013 | |
| Functional safety | EN 61508:2010 and EN 62061:2005 (up to SIL3) EN 13849-1:2008/AC:2009 (PL e) | |
| Programming instructions | ||
| Profile | configurable | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 160 g | |
| Mounting | DIN mounting rail | |
| General information | ||
| Application areas | Speed monitor: Local inputs, 1 to 2 axles up to 4 kHz | |
