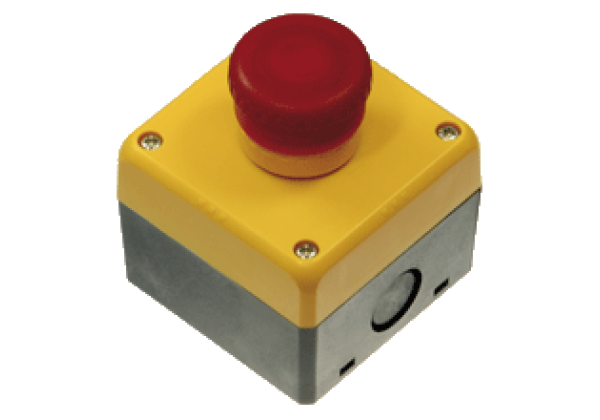

Emergency stop button VAZ-2E1A-F85A-S

Code: VAZ-2E1A-F85A-S

Emergency stop button

Datasheet excerpt: Technical data of VAZ-2E1A-F85A-S

Product Description
Emergency stop button

Functional safety related parameters
B_10d		100000
Electrical specifications
Rated operating voltage		24 V AC/DC, ± 10 %
Rated operating current		14 mA
Insulation resistance		min. 100 MΩ
Input
Number/Type		2 NC Safety function by positive opening in accordance with IEC/EN 60947-5-1 Reset by pulling or turning
Supply		24 V AC/DC
Output
Number/Type		LED red
Supply		24 V AC/DC
Compliance with standards and directives
Directive conformity
	Machinery Directive 2006/42/EC	EN ISO 13850:2008 (applicable sections) EN ISO 13849-1:2006 (calculation of B10d value, Appendix C)
	Low Voltage Directive 2006/95/EC	EN 60947-1:2007 EN 60947-5-5/A1:2005
Standard conformity
	Functional safety	EN 60947-1:2007 , EN 60947-5-1:2005, EN 60947-5-5/A1:2005
	Degree of protection	EN 60529:2000
Ambient conditions
Ambient temperature		-20... 55 °C (-4... 131 °F) (no freezing)
Storage temperature		-45... 80 °C (-49... 176 °F)
Relative humidity		45... 80 % , noncondensing
Mechanical specifications
Degree of protection		IP65 (with appropriate cable duct)
Connection		screw terminals
Life span		> 250,000 switching operations
