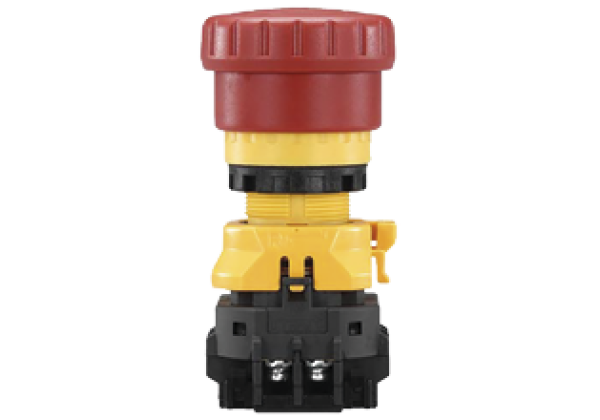

AS-Interface EMERGENCY STOP button VAZ-2E1A-PM-S

Code: VAZ-2E1A-PM-S

AS-Interface EMERGENCY STOP button

Datasheet excerpt: Technical data of VAZ-2E1A-PM-S

Product Description
AS-Interface EMERGENCY STOP button

General specifications
UL File Number		E198304
Functional safety related parameters
MTTF_d		284 a
B_10d		2 E+5
Electrical specifications
Rated operating voltage		24 V
Rated operating current		5 A
Surge protection		Category II
Insulation resistance		min. 100 MΩ
Bulb		15 mA
Input
Number/Type		2 NC Safety function by positive opening in accordance with IEC/EN 60947-5-1 Reset by pulling
Output
Number/Type		LED red
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	IEC 60947-5-5
Standard conformity
Degree of protection		IEC 60529
Electrical safety		EN/IEC 60947-5-5
Functional safety		IEC 60947-5-1 IEC 60947-5-5
Ambient conditions
Ambient temperature		-25... 55 °C (-13... 131 °F) (no freezing)
Storage temperature		-40... 80 °C (-40... 176 °F)
Relative humidity		45... 85 % , noncondensing
Pollution degree		3
Mechanical specifications
Operating force		Push: 32 N Pull: 21 N Turn: 0.27 Nm Minimum for positive opening: 80 Nm
Operating distance		for positive opening operation: min. 4 mm maximal: 4.5 mm
Degree of protection		IP65 depends on mounting point
Connection		Cable cross section 0.75 mm² to 1.25 mm² (AWG 18 to 16)
Installation		Installation in 22 mm hole
Mass		72 g
Tightening torque, fastening screws		2 Nm
Tightening torque of clamping screws		0.6 to 1 Nm
Life span		> 250,000 switching operations
