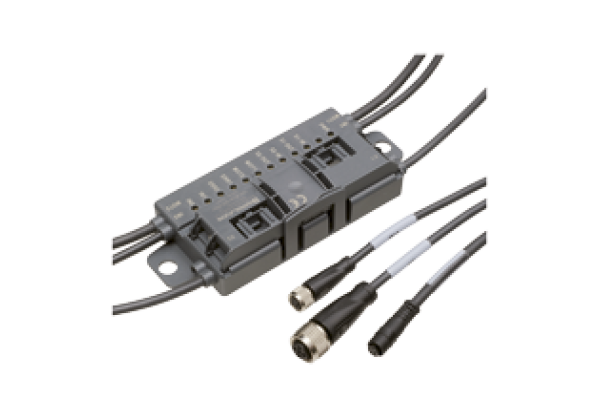

Stand-alone connecting module VAZ-2E2A-G20-ZPA1
Brand: Pepperl+Fuchs
Code: VAZ-2E2A-G20-ZPA1
G20 motor control module with an integrated logic function for Interroll EC310, Interoll EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC
Datasheet excerpt: Technical data of VAZ-2E2A-G20-ZPA1
| Product Description |
|---|
| G20 motor control module with an integrated logic function for Interroll EC310, Interoll EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC |
| General specifications | ||
|---|---|---|
| UL File Number | E223772 "For use in NFPA 79 Applications only" | |
| Compatible roller motors | Interroll EC310, Interroll EC5000 24V AI (20W / 35W / 50W), Rulmeca BL3, Itoh Denki PM500XK, Itoh Denki PM500XC | |
| Indicators/operating means | ||
| Switch | S1: motor speed; rotary switch, 10 positions S2: direction of rotation and start/stop ramp; rotary switch, 10 positions S3: operating mode, rotary switch, 10 positions | |
| LED ERR | Motor fault; 2 yellow LEDs yellow: motor error flashing yellow: motor protection unit defective | |
| LED PWR | Supply voltage UPWR; green LED | |
| LED IN | switching state (input); 2 LED yellow | |
| LED MOT | Motor active; 2 yellow LEDs | |
| LED XIN | Zone coupling input active; 2 yellow LEDs | |
| LED XOUT | Zone coupling output active; 2 yellow LEDs | |
| Electrical specifications | ||
| Rated operating voltage | 18 V... 30 V DC PELV (via UPWR) | |
| Rated operating current | ≤ 30 mA (Closed-circuit current) max. 10 A (<2 s) | |
| Surge protection | UPWR: overvoltage category II, securely isolated power supply (PELV) | |
| Interface 1 | ||
| Interface type | Interface for coupling zones with one input and one output for control signals X1 | |
| Physical | 4-pin M12 socket Electronic output: PNP, overload and short-circuit proof (X1OUT) Input: PNP, galvanically isolated, potential-free (X1IN) | |
| Load current | Input: ≤ 8 mA (internally limited) Output: 10 mA | |
| Voltage | Input: max. 30 V DC Output (via UPWR): ≥ (UPWR - 2 V) | |
| Switching point | in accordance with DIN EN 61131-2 (type 1) 0 (undamped): ≤ 0.5 mA 1 (damped): ≥ 2 mA | |
| Interface 2 | ||
| Interface type | Interface for coupling zones with one input and one output for control signals X2 | |
| Physical | M12 connector, 4-pin Electronic output: PNP, overload and short-circuit proof (X2OUT) Input: PNP, galvanically isolated, potential-free (X2IN) | |
| Load current | Input: ≤ 8 mA (internally limited) Output: 10 mA | |
| Voltage | Input: max. 30 V DC Output (via UPWR): ≥ (UPWR - 2 V) | |
| Switching point | in accordance with DIN EN 61131-2 (type 1) 0 (undamped): ≤ 0.5 mA 1 (damped): ≥ 2 mA | |
| Input | ||
| Number/Type | 2 Inputs for 3-wire sensors (PNP), DC | |
| Supply | via UPWR | |
| Current loading capacity | 500 mA , overload and short-circuit protected | |
| Input current | ≤ 8 mA (limited internally) | |
| Switching point | according to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA 1 (damped) ≥ 2.0 mA | |
| Input filter | 10 ms | |
| Output | ||
| Number/Type | 2 outputs for DC roller motors (MOT1, MOT2) | |
| Supply | via UPWR | |
| Current | 3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0,3 s) per motor | |
| Overload protection | Fuse 5 A, I2t = 53.7 A2s per motor | |
| Velocity signal | 1.4 … 13 V at no-load Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Control using rotary switch S1 | |
| Rotation direction signal | low: high impedance high; ≥ (UPWR - 1.0 V) in no-load operation Ri = 5.6 kΩ, RLOAD ≥ 5 kΩ Control using rotary switch S2 | |
| Motor fault | NPN digital input, U0 = 14 V, Ri = 34 kΩ 0 (no error) ≥ 125 µA 1 (error) ≤ 25 µA | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 61326-1:2006 | |
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Input | EN 61131-2:2007 | |
| Emitted interference | EN 61000-6-4:2007 | |
| Noise immunity | EN 61000-6-2:2005 , EN 61326-1:2006 | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Storage temperature | -30... 85 °C (-22... 185 °F) | |
| Relative humidity | 85 % non-condensing | |
| Climatic conditions | For indoor use only | |
| Altitude | ≤ 2000 m above MSL | |
| Shock and impact resistance | 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks | |
| Vibration resistance | 0.75 mm 10... 57 Hz , 5 g 57... 150 Hz, 20 cycles | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP65 in accordance with EN 60529 (not certified by UL) | |
| Connection | PWR: insulation piercing technology Black flat cable Inputs/outputs: M8 round plug connector in accordance with EN 61076-2-104 Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded) Matching connector: LM004-Gx1-A or similar Outputs: NF005-SS1-B (5-pin, bushing contacts, snap lock, B-coded) Matching connector: NM005-Sx1-B or similar Zone coupling: M12 round plug connector in accordance with EN 61076-2-101 X1: M12, 4-pin, bushing contacts, screw-locking, A-coded Female connector: M12, 4-pin, connector contacts, screw-locking, A-coded X2: M12, 4-pin, connector contacts, screw-locking, A-coded Female connector: M12, 4-pin, bushing contacts, screw-locking, A-coded | |
| Mass | 310 g | |
| Mounting | 2 clips with ∅ 8 mm drill hole | |
| Cable length | 1 m (inputs/outputs) , 1.5 m (zone coupling), max. 30 m | |
| Note | The flat cable routing is designed for 100 actuation cycles | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242604 |
| ECLASS 12.0 | 27242604 |
| ECLASS 11.0 | 27242604 |
| ECLASS 10.0.1 | 27242604 |
| ECLASS 9.0 | 27242604 |
| ECLASS 8.0 | 27242604 |
| ECLASS 5.1 | 27242604 |
| ETIM 9.0 | EC001599 |
| ETIM 8.0 | EC001599 |
| ETIM 7.0 | EC001599 |
| ETIM 6.0 | EC001599 |
| ETIM 5.0 | EC001599 |
| UNSPSC 12.1 | 39121535 |
