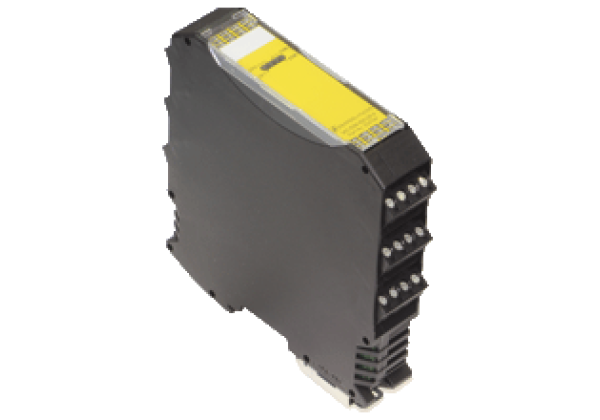

AS-Interface contact expansion module VAZ-2E8A-KE4-Z/R-S
Brand: Pepperl+Fuchs
Code: VAZ-2E8A-KE4-Z/R-S
Safe contact expansion, 2 channels, 8 contact sets
Datasheet excerpt: Technical data of VAZ-2E8A-KE4-Z/R-S
| Product Description |
|---|
| Safe contact expansion, 2 channels, 8 contact sets |
| General specifications | ||
|---|---|---|
| Description | Safe contacts, instantaneous 4 contact sets per channel (contacts are one-way guided) | |
| Functional safety related parameters | ||
| Category | Cat. 4 | |
| Mission Time (TM) | 20 a | |
| B10d | 1.96 E+6 | |
| Indicators/operating means | ||
| LEDs 1, 2, 3, 4 | LEDs yellow CH1, CH2: contact 1 and 2 closed EDM1, EDM2: feedback circuit 1 and 2 closed | |
| Electrical specifications | ||
| Rated operating current | 80 mA per channel | |
| Surge protection | overvoltage category III | |
| Input | ||
| Pulse length | max. 1.5 ms (permissible test pulse time) | |
| Signal level | 0-signal: < 2.4 V DC 1-signal: 18... 26.5 V | |
| Output | ||
| Short-circuit protection/overload | 6 A gG | |
| Switching current | max. 6 A for 20 ms | |
| Current | Total current per channel 12 A | |
| Response delay | Response delay: < 20 ms | |
| Switching frequency | 15 Hz | |
| Relay | ||
| Switching voltage | 10 V... 230 V | |
| Switching current | 5 mA ... 3 A | |
| Mechanical life | approx. 10 x 106 switching cycles | |
| Electrical life | AC1 (360 S/h), approx. 100 x 103 switching cycles | |
| Contact loading | Feedback loop: max. 20 mA | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| Low Voltage Directive 2006/95/EC | EN 60947-1:2007/A1:2011 EN 60947-5-1:2004/AC:2005 | |
| EMC Directive 2004/108/EC | EN 61000-6-2:2005/AC:2005 EN 61000-6-3:2007/A1:2011 | |
| Standard conformity | ||
| Electromagnetic compatibility | EN 61000-6-2:2005, EN 61000-6-4:2001 | |
| Degree of protection | EN 60529:2000 | |
| Electrical safety | EN 60947-1:2007 EN 60947-5-1:2005 | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Relative humidity | non-condensing | |
| Pollution degree | 2 | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mass | 270 g | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27242692 |
| ECLASS 12.0 | 27242692 |
| ECLASS 11.0 | 27242692 |
| ECLASS 10.0.1 | 27242692 |
| ECLASS 9.0 | 27242692 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121535 |
