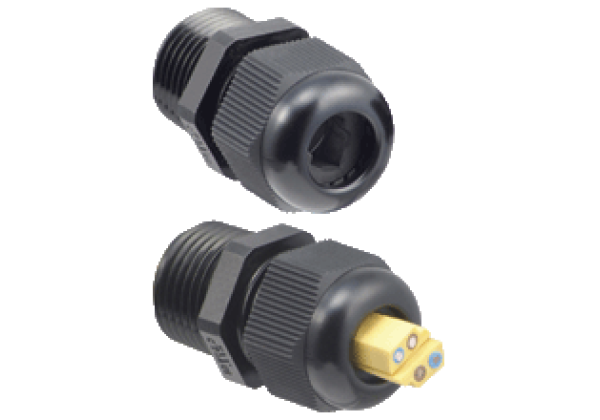

Seal VAZ-2FK-GLAND-M20
Brand: Pepperl+Fuchs
Code: VAZ-2FK-GLAND-M20
Flat cable sleeve
Datasheet excerpt: Technical data of VAZ-2FK-GLAND-M20
| Product Description |
|---|
| Flat cable sleeve |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -20... 100 °C (-4... 212 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 2 Flat cable | |
| Material | PA 6 V-2 Neoprene | |
| Installation | M20 cable gland No O-Ring necessary to obtain IP65 seal. Crush ribs on underside of HEX will provide the seal | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27279090 |
| ECLASS 12.0 | 27279090 |
| ECLASS 11.0 | 27279090 |
| ECLASS 10.0.1 | 27279090 |
| ECLASS 9.0 | 27279090 |
| ECLASS 8.0 | 27279090 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31251501 |
