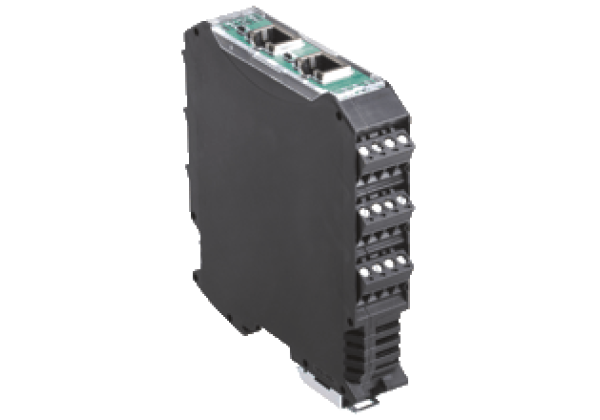

AS-Interface for rotation speed monitor adapter module VAZ-2T-KE4-ENC-2V45
Brand: Pepperl+Fuchs
Code: VAZ-2T-KE4-ENC-2V45
KE4 switch cabinet module for rotary encoder
Adapter for 2 rotary encoder to rotation speed monitor and control panel
Datasheet excerpt: Technical data of VAZ-2T-KE4-ENC-2V45
| Product Description |
|---|
| KE4 switch cabinet module for rotary encoder Adapter for 2 rotary encoder to rotation speed monitor and control panel |
| Electrical specifications | ||
|---|---|---|
| Rated operating voltage | max. 40 V | |
| Interface 1 | ||
| Interface type | Rotary encoder and control panel | |
| Physical | 6 x 4-contact COMBICON plug | |
| Interface 2 | ||
| Interface type | Rotation Speed Monitor | |
| Physical | 2 x RJ-45 | |
| Input | ||
| Number/Type | Two inputs for rotary encoders HTL, SinCos, TTL, SSI | |
| Supply | Separate for each rotary encoder | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 85 °C (-13... 185 °F) | |
| Altitude | 0... 2000 m | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | removable terminals rated connection capacity: rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2 for multiple-wire connection with two wires of equal cross-section: flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2 | |
| Material | ||
| Housing | PA 66-FR | |
| Mounting | DIN mounting rail | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
