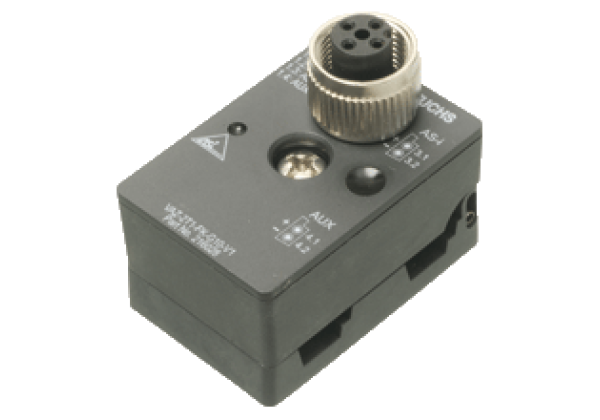

AS-Interface splitter box VAZ-2T1-FK-G10-V1

Code: VAZ-2T1-FK-G10-V1

Splitter box G10, AS-Interface and auxiliary voltage to M12

Datasheet excerpt: Technical data of VAZ-2T1-FK-G10-V1

Product Description
Splitter box G10, AS-Interface and auxiliary voltage to M12

General specifications
Construction type		Socket, straight Flat cable terminals AS-Interface/ext. auxiliary voltage
UL File Number		E223772 "For use in NFPA 79 Applications only"
Electrical specifications
Rated operating voltage		≤ 32 V PELV ( AS-Interface , ext. auxiliary voltage AUX )
Rated operating current		≤ 4 A AS-Interface, ≤ 4 A AUX
Protection class		III
Surge protection		overvoltage category III
Pulse withstand voltage		800 V
Compliance with standards and directives
Standard conformity
	Degree of protection	EN 60529:2000
Approvals and certificates
UL approval		cULus Listed, Type 1 enclosure
Ambient conditions
Ambient temperature		-25... 75 °C (-13... 167 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Pollution degree		3
Mechanical specifications
Degree of protection		IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*
Connection		Flat cable AS-Interface: cable piercing method Flat cable ext. auxiliary voltage U_AUX: Insulation penetration technology Plug connection: M12 x 1 socket (V1)
Material
	Contacts	CuSn / Au
	Housing	PBT PC
	Mounting screw	Stainless steel 1.4305 / AISI 303
Mass		45 g
Tightening torque, fastening screws		1.65 Nm
