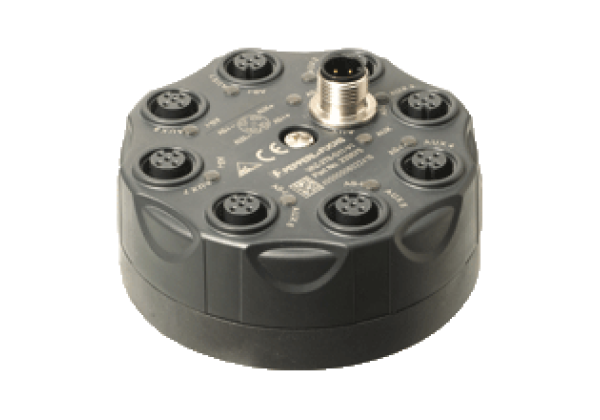

AS-Interface splitter box VAZ-2T8-G11-V1

Code: VAZ-2T8-G11-V1

Splitter box, M12, AS interface and auxiliary voltage to eight M12 connectors

Datasheet excerpt: Technical data of VAZ-2T8-G11-V1

Product Description
Splitter box, M12, AS interface and auxiliary voltage to eight M12 connectors

Indicators/operating means
LED AS-i		AS-Interface voltage; dual LED green/red green: voltage OK red: reversed voltage
LED AUX		ext. auxiliary voltage U_AUX; dual LED green/red green: voltage OK red: reverse voltage
Electrical specifications
Rated operating voltage		≤ 32 V PELV ( AS-Interface , ext. auxiliary voltage AUX )
Rated operating current		≤ 4 A
Protection class		III
Surge protection		overvoltage category III
Pulse withstand voltage		800 V
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 62026-2:2013
Standard conformity
Degree of protection		EN 60529:2000
AS-Interface		EN 62026-2:2013
Ambient conditions
Ambient temperature		-25... 70 °C (-13... 158 °F)
Storage temperature		-25... 85 °C (-13... 185 °F)
Relative humidity		85 % , noncondensing
Climatic conditions		For indoor use only
Altitude		≤ 2000 m above MSL
Pollution degree		3
Mechanical specifications
Degree of protection		IP67 according to EN 60529
Connection		Plug connection: M12 x 1 socket (V1) Connector: 1 x M12 connector (V1)
Material
	Contacts	CuSn / Au
	Housing	PBT PC
	Mounting screw	Stainless steel 1.4305 / AISI 303
Mass		120 g
Tightening torque, housing screws		1.8 Nm
Tightening torque, cable gland		0.4 Nm
Mounting		Mounting plate
