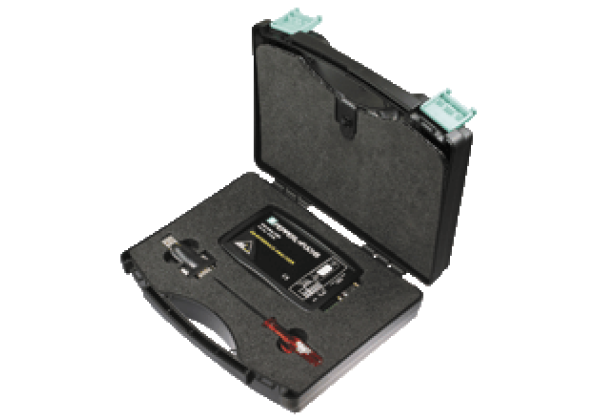

AS-Interface Analyzer VAZ-ANALYZER
Brand: Pepperl+Fuchs
Code: VAZ-ANALYZER
AS-Interface Analyzer
Datasheet excerpt: Technical data of VAZ-ANALYZER
| Product Description |
|---|
| AS-Interface Analyzer |
| General specifications | ||
|---|---|---|
| AS-Interface specification | V3.0 | |
| Functional safety related parameters | ||
| MTTFd | 280 a at 30 °C | |
| Memory | ||
| Telegram memory | 256000 AS-Interface Telegrams | |
| Indicators/operating means | ||
| LED POWER | AS-Interface voltage; LED green | |
| LED SER ACTIVE | interface in operation; LED green | |
| LED Test | Test mode; LED green/red | |
| Electrical specifications | ||
| Insulation voltage | ≥ 500 V | |
| Rated operating current | approx. 70 mA | |
| Power supply | from AS-Interface | |
| Interface | ||
| Interface type | AS-Interface: Screw terminal Trigger: Screw terminal (Input: 24 V; Output: TTL) PC: RS 232 with 9-pin Sub-D Socket | |
| Ambient conditions | ||
| Ambient temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -25... 70 °C (-13... 158 °F) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 19200504 |
| ECLASS 12.0 | 19200504 |
| ECLASS 11.0 | 19200504 |
| ECLASS 10.0.1 | 19200504 |
| ECLASS 9.0 | 19200504 |
| ECLASS 8.0 | 27279211 |
| ECLASS 5.1 | 27279211 |
| ETIM 9.0 | EC001418 |
| ETIM 8.0 | EC001418 |
| ETIM 7.0 | EC001418 |
| ETIM 6.0 | EC001418 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 41113650 |
